DATALOGIC MATRIX 220
DATALOGIC MATRIX 220: 2D Imager Barcode Reader
Key Benefits
The Gryphon™ GPS4490 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs, and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, and snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon™ GPS4490 offers good-read visual confirmation with Datalogic’s ‘Green Spot’ technology as well as supporting advanced features like image/signature capture and document scanning, eliminating the need for separate equipment at the POS.
Key Features
Achieve more with the smallest presentation scanner

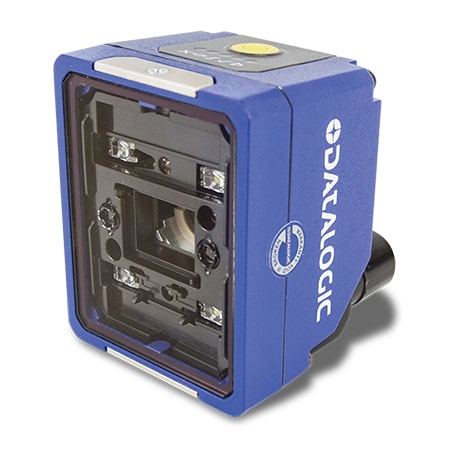

The Matrix 220 imager is designed for superior performance thanks to a 1.2 MP high resolution sensor, a new image multicore processing platform, innovative lighting solutions and industrial grade electronic focus technology, which make it the ideal imager for Electronics, Automotive, Packaging and Document Handling applications.
The integrated ultra-flexible illumination system makes the Matrix 220 imager perfect for reading codes marked with DPM (Direct Part Marking).
The red/blue-light DPM models offer in a single model the embedded polarized and diffused light options resulting in optimal illumination on any type of surface; the Standard and DPM High Power illuminators models are the ideal solution for challenging high speed applications and DPM applications that require double image luminosity and further reading range.
The electronic focus control allows easy remote job changing during assembly line reconfiguration and remote focus adjustment offering extreme reading flexibility.
Matrix 220 is the first stationary industrial scanner on the market supporting OPC UA protocol for Industry 4.0 communication and Digimarc Barcode technology for added value decoding applications.
In its’ market segment, the Matrix 220 is the first reader to embed the High Dynamic Range (HDR) feature. This improves image quality and contrast for higher code readability and allows to use faster line speed, thanks to exposure time reduction.
The Matrix 220 imager has the best ease of use because of the green and red spot lights, the X-Press™ button, the intuitive HMI and the DL.CODE™ configuration software, which has been improved with the Automatic Setup mode for a quick and easy code reading.
ESD and Anti-YAG protection are available as front cover accessories to enhance the product flexibility reducing the number of models and simplifying the stock management.
The IP65 and IP67 industrial grade rating and the operating temperature range from -10 to 50 ºC / 14 to 122 ºF guarantee the best quality and robustness in the Manufacturing Industry applications.
The Matrix 220 imager offers cost-effective communication options with Power over Ethernet (PoE) connectivity, onboard PROFINET/IO and ETHERNET/IP industrial fieldbus.
With its outstanding performance, the Matrix 220 imager delivers a high performance/price ratio offering in the Datalogic portfolio.
The Matrix 220X is now available with Premium models designed for superior performance, featuring a new quad-core image processing platform that can double the processing power and halve the decoding time compared to the standard version. It also has increased throughput and efficiency and is capable of capturing and processing twice as many images as the standard version.
AVAILABLE CABLES
| CAB-DS01-S M12-IP67 TO CBX 1M 93A050058 |
| CAB-DS03-S M12-IP67 TO CBX 3M 93A050059 |
| CAB-DS05-S M12-IP67 TO CBX 5M 93A050060 |
| CAB-ETH-X-D ADAPTER CAB GETH-X to ETH-D 93A050129 |
| CAB-ETH-X-M01 M12-IP67 GETH-X CAB 1M 93A050122 |
| CAB-ETH-X-M03 M12-IP67 GETH-X CAB 3M 93A050123 |
| CAB-ETH-X-M05 M12-IP67 GETH-X CAB 5M 93A050124 |
| CAB-ETH-X-RJ ADAPTER CAB GETH-X to RJ45 93A050128 |
| CAB-F-ETH-M01 M12-IP67 GETH-X FLEX CAB1M 93A050125 |
| CAB-F-ETH-M03 M12-IP67 GETH-X FLEX CAB3M 93A050126 |
| CAB-F-ETH-M05 M12-IP67 GETH-X FLEX CAB5M 93A050127 |
| CAB-F-M12-17P01 IP67 FLEX CAB TO CBX 1M 93A050116 |
| CAB-F-M12-17P03 IP67 FLEX CAB TO CBX 3M 93A050117 |
| CAB-F-M12-17P05 IP67 FLEX CAB TO CBX 5M 93A050118 |
| CAB-GD03 M12 17P 3M isolated wires 95A900052 |
| CAB-GD03 M12 F/L 3M 93A050076 |
| CAB-GD05 M12 17P 5M isolated wires 95A900053 |
| CAB-GD05 M12 F/L 5M 93A050077 |
| CAB-GD10 M12 F/L 10M 93A050078 |
| SERIAL RS232 HID E KEYBRD CONVERTER CBL 93ACC0268 |
