DATALOGIC MATRIX 320 Series
DATALOGIC MATRIX 320 Series: 2MP/5MP Stationary Industrial Scanner
Matrix 320 5MP:
The Gryphon™ GPS4490 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs, and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, and snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon™ GPS4490 offers good-read visual confirmation with Datalogic’s ‘Green Spot’ technology as well as supporting advanced features like image/signature capture and document scanning, eliminating the need for separate equipment at the POS.
Matrix 320 5MP:
The Gryphon™ GPS4490 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs, and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, and snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon™ GPS4490 offers good-read visual confirmation with Datalogic’s ‘Green Spot’ technology as well as supporting advanced features like image/signature capture and document scanning, eliminating the need for separate equipment at the POS.
Matrix 320 2MP:
Empower Your Traceability Applications
The most innovative sensor available on the market
A 2MP sensor (1920 × 1080 pixels) in a 16:9 form factor delivers the horizontal Field of View (FOV) and performance of a 3MP sensor. Built on a Multicore platform, the sensor delivers an unrivalled reading speed for the most challenging applications in the packaging industry. Reading damaged labels or codes, and strong DPM reading performance makes this fixed mount barcode scanner the perfect solution for a multitude of applications. Its compact form factor allows for mounting almost anywhere, including many operations where handheld scanners are traditionally used.
Key Features
Achieve more with the smallest presentation scanner

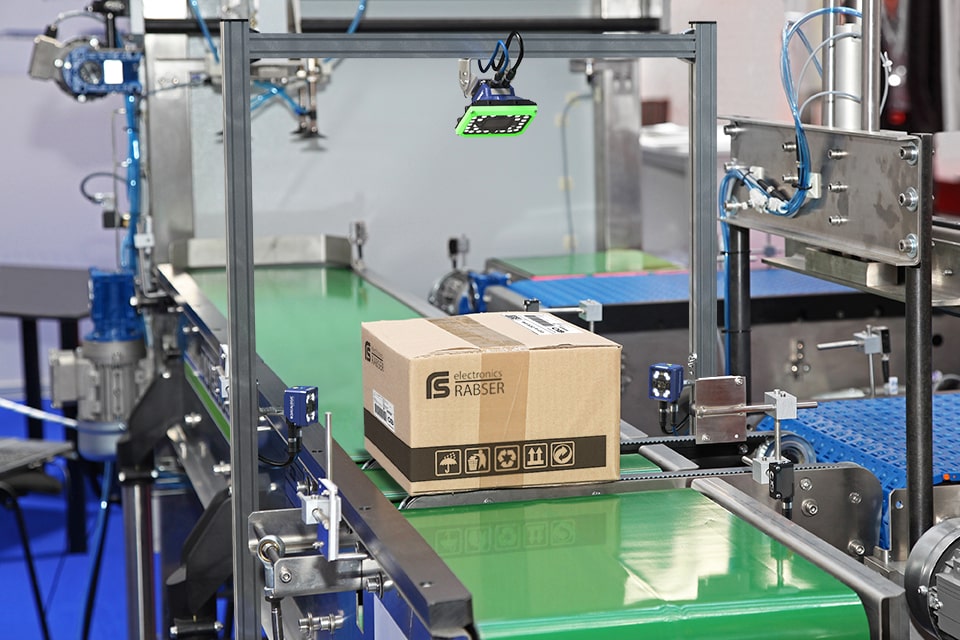

All the Matrix 320 series models have the new built-in Time of Flight and orientation sensors, offering the best user experience to maximize production throughput
An embedded distance sensor with Time of Flight (ToF) technology automatically detects reading distance to dynamically optimize the photometric settings, ensuring ideal scanning performance. The orientation sensor allows easy positioning of the fixed industrial scanner at installation and saves its position in permanent memory. Automatic detection of unwanted product orientation change immediately warns the operator, minimizing production stops. In case of replacement, saved position data can be easily restored on the new device for quick and safe maintenance.
Matrix 320 2MP offer the Liquid Lens (LQL) models with three optical options: 6mm, 9mm and 16mm for wide, medium and narrow viewing angles. The LQL models have the electronic focus adjustment for extreme reading flexibility. It is simple to remotely change focus in changing the production batch without the need to open or touch the stationary industrial scanner. Remote focus on LQL lends itself well when multiple images of the same object are required at different focal distances.
The Matrix 320 2MP and 5MP models offer the ability to use the high-quality C-Mount lenses from Datalogic and any C-Mount compatible lenses or third-party vendors. With these additions, users get the highest flexibility for solving the toughest application challenges in the barcode scanner configuration.
Customize the Matrix 320 Series to your exact needs, with an extended portfolio of lenses, lighting, filters, and accessories for the barcode scanner configuration. Being modular, you can easily set the reader to solve the vast majority of vertical applications. Lighting color and intensity are easily selectable based on the code type, material that the code is on, and the color of the material. However, if you prefer a simple plug and play solution, you can purchase a ready-assembled, fully functional stationary barcode scanner solution for use straight out of the box. The combination of these attributes gives rise to easy stock management and overall reduced total cost of ownership for end users, partners, and machine builders alike.
The IP65 and IP67 industrial grade rating and the operating temperature range from -10 to 50 ºC / 14 to 122 ºF guarantee the best quality and robustness in the Manufacturing Industry applications.
The Matrix 220 imager offers cost-effective communication options with Power over Ethernet (PoE) connectivity, onboard PROFINET/IO and ETHERNET/IP industrial fieldbus.
With its outstanding performance, the Matrix 220 imager delivers a high performance/price ratio offering in the Datalogic portfolio.
The Matrix 220X is now available with Premium models designed for superior performance, featuring a new quad-core image processing platform that can double the processing power and halve the decoding time compared to the standard version. It also has increased throughput and efficiency and is capable of capturing and processing twice as many images as the standard version.
AVAILABLE CABLES
| CAB-DS01-S M12-IP67 TO CBX 1M 93A050058 |
| CAB-DS03-S M12-IP67 TO CBX 3M 93A050059 |
| CAB-DS05-S M12-IP67 TO CBX 5M 93A050060 |
| CAB-ETH-X-M01 M12-IP67 GETH-X CAB 1M 93A050122 |
| CAB-ETH-X-M03 M12-IP67 GETH-X CAB 3M 93A050123 |
| CAB-ETH-X-M05 M12-IP67 GETH-X CAB 5M 93A050124 |
| CAB-ETH-X-M10 M12-IP67 GETH-X CAB 10M 93A050140 |
| CAB-ETH-X-RJ ADAPTER FULL GETH-X to RJ45 93A050141 |
| CAB-F-ETH-M01 M12-IP67 GETH-X FLEX CAB1M 93A050125 |
| CAB-F-ETH-M03 M12-IP67 GETH-X FLEX CAB3M 93A050126 |
| CAB-F-ETH-M05 M12-IP67 GETH-X FLEX CAB5M 93A050127 |
| CAB-F-M12-17P01 IP67 FLEX CAB TO CBX 1M 93A050116 |
| CAB-F-M12-17P03 IP67 FLEX CAB TO CBX 3M 93A050117 |
| CAB-F-M12-17P05 IP67 FLEX CAB TO CBX 5M 93A050118 |
| CAB-GD03 M12 17P 3M isolated wires 95A900052 |
| CAB-GD03 M12 F/L 3M 93A050076 |
| CAB-GD05 M12 17P 5M isolated wires 95A900053 |
| CAB-GD05 M12 F/L 5M 93A050077 |
| CAB-GD10 M12 F/L 10M 93A050078 |
| Cable, PWR & I/O, CAB-DS10-S, P-Series to CBX (DB25), 10m 93A051390 |
| CAB-M12-19P-17P ADAPTER M410 to M410N 93A050132 |
| ETH to USB HID KEYBRD CONVERTER CBL 93A050146 |
| SERIAL RS232 HID E KEYBRD CONVERTER CBL 93ACC0268 |
