DATALOGIC PD 9531-DPM 2D

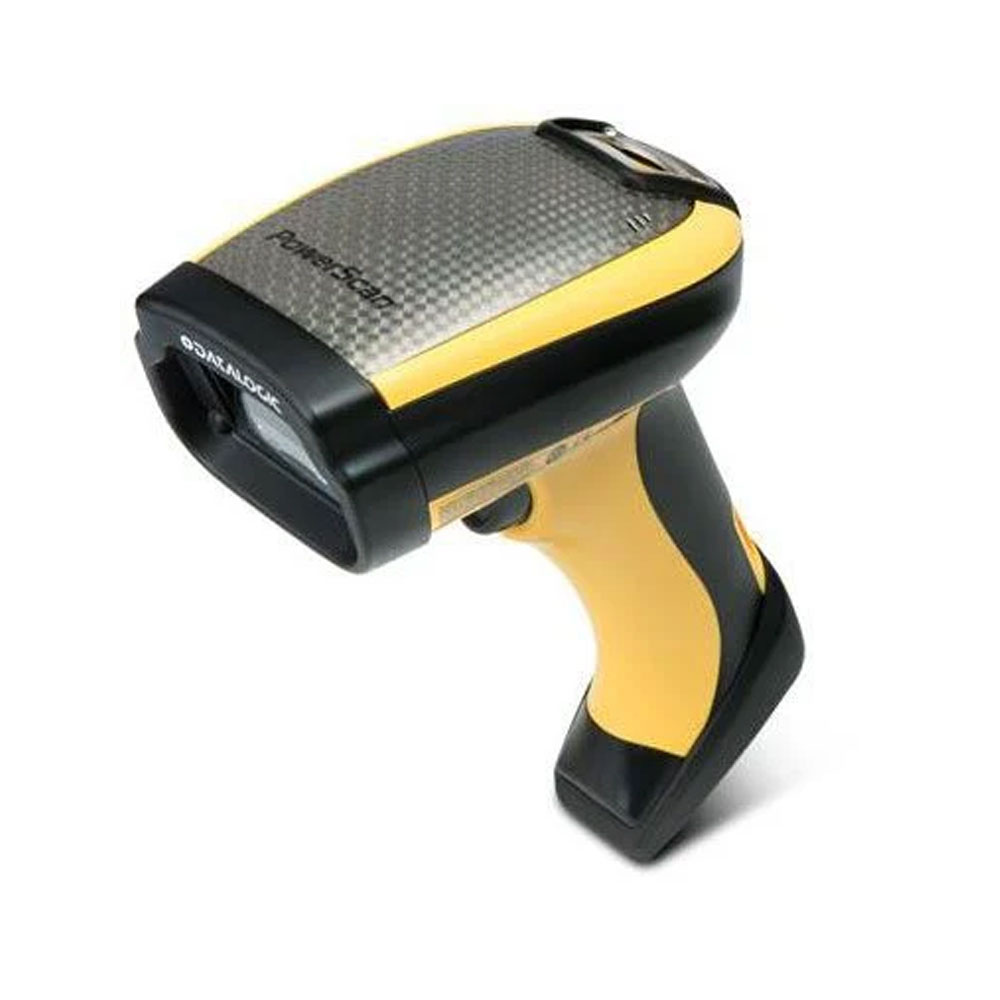

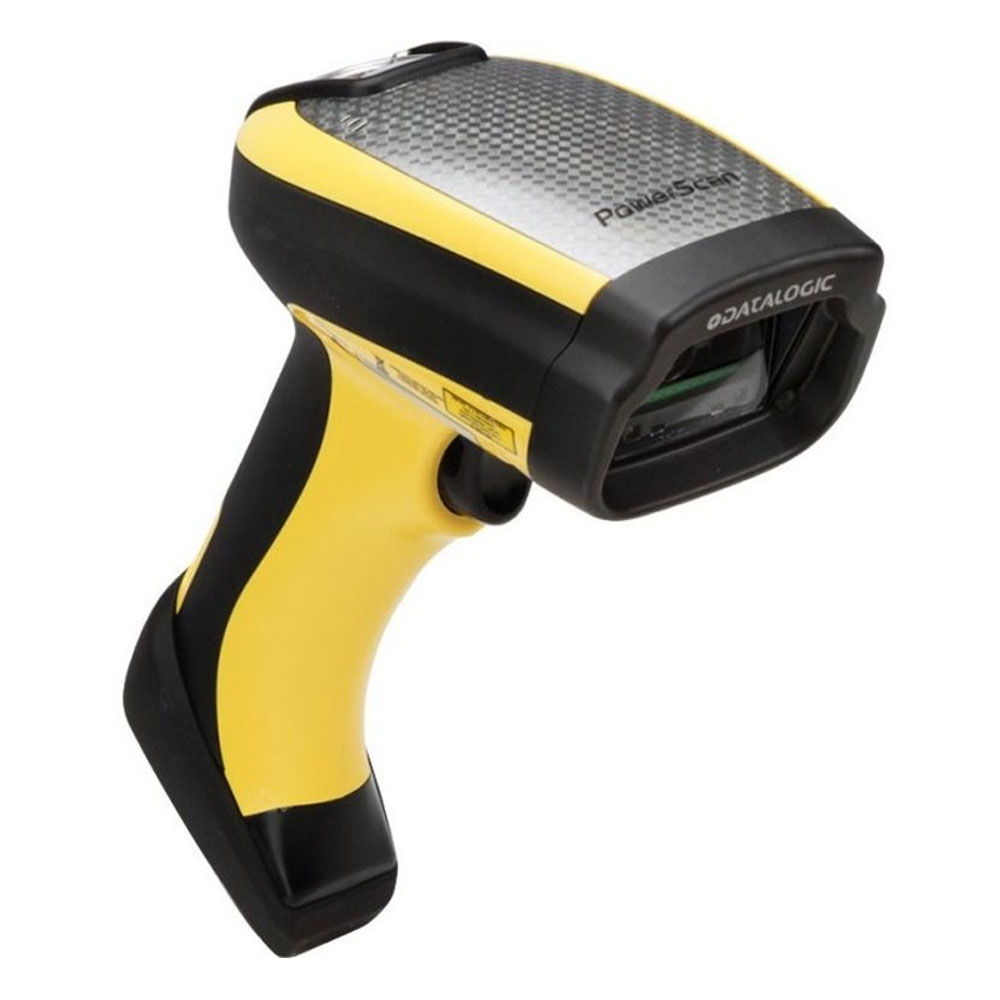

Datalogic PD9531-DPM Barcode Scanner
Matrix 320 5MP:
The Gryphon™ GPS4490 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs, and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, and snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon™ GPS4490 offers good-read visual confirmation with Datalogic’s ‘Green Spot’ technology as well as supporting advanced features like image/signature capture and document scanning, eliminating the need for separate equipment at the POS.
Matrix 320 5MP:
The Gryphon™ GPS4490 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs, and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, and snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon™ GPS4490 offers good-read visual confirmation with Datalogic’s ‘Green Spot’ technology as well as supporting advanced features like image/signature capture and document scanning, eliminating the need for separate equipment at the POS.
Matrix 320 2MP:
Empower Your Traceability Applications
The most innovative sensor available on the market
A 2MP sensor (1920 × 1080 pixels) in a 16:9 form factor delivers the horizontal Field of View (FOV) and performance of a 3MP sensor. Built on a Multicore platform, the sensor delivers an unrivalled reading speed for the most challenging applications in the packaging industry. Reading damaged labels or codes, and strong DPM reading performance makes this fixed mount barcode scanner the perfect solution for a multitude of applications. Its compact form factor allows for mounting almost anywhere, including many operations where handheld scanners are traditionally used.
Key Benefits
Achieve more with the smallest presentation scanner
DPM TECHNOLOGY
Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser/ chemical etching, dot peening, and inkjet printing. Each of these methods have specific advantages and disadvantages in terms of durability, cost and ease of reading.
The PowerScan™ and 9500-DPM Evo series of scanners are rugged handheld area imagers specifically addressed and capable of reading codes marked with DPM.
READING CAPABILITIES
The PowerScan DPM series includes the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes on printed labels. High-density optics allow the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in. The intuitive aiming system provides the highest first-pass reading rates. A soft pulsed white illumination light results in reduced flashes and is very gentle to the eyes.
FULL CONNECTIVITY
The PM9500 DPM Evo series offers the display option with 4 configurable keys. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 is provided with Standard MultiInterface: USB-KBD, USB-COM, USB-OEM, RS-232 and Ethernet connectivity: Telnet, Web Server, Data Socket, Ethernet/IP.
MOTIONIX™ MOTION-SENSING TECHNOLOGY
Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode
The IP65 and IP67 industrial grade rating and the operating temperature range from -10 to 50 ºC / 14 to 122 ºF guarantee the best quality and robustness in the Manufacturing Industry applications.
The Matrix 220 imager offers cost-effective communication options with Power over Ethernet (PoE) connectivity, onboard PROFINET/IO and ETHERNET/IP industrial fieldbus.
With its outstanding performance, the Matrix 220 imager delivers a high performance/price ratio offering in the Datalogic portfolio.
The Matrix 220X is now available with Premium models designed for superior performance, featuring a new quad-core image processing platform that can double the processing power and halve the decoding time compared to the standard version. It also has increased throughput and efficiency and is capable of capturing and processing twice as many images as the standard version.
AVAILABLE CABLES
| CAB-DS01-S M12-IP67 TO CBX 1M 93A050058 |
| CAB-DS03-S M12-IP67 TO CBX 3M 93A050059 |
| CAB-DS05-S M12-IP67 TO CBX 5M 93A050060 |
| CAB-ETH-X-M01 M12-IP67 GETH-X CAB 1M 93A050122 |
| CAB-ETH-X-M03 M12-IP67 GETH-X CAB 3M 93A050123 |
| CAB-ETH-X-M05 M12-IP67 GETH-X CAB 5M 93A050124 |
| CAB-ETH-X-M10 M12-IP67 GETH-X CAB 10M 93A050140 |
| CAB-ETH-X-RJ ADAPTER FULL GETH-X to RJ45 93A050141 |
| CAB-F-ETH-M01 M12-IP67 GETH-X FLEX CAB1M 93A050125 |
| CAB-F-ETH-M03 M12-IP67 GETH-X FLEX CAB3M 93A050126 |
| CAB-F-ETH-M05 M12-IP67 GETH-X FLEX CAB5M 93A050127 |
| CAB-F-M12-17P01 IP67 FLEX CAB TO CBX 1M 93A050116 |
| CAB-F-M12-17P03 IP67 FLEX CAB TO CBX 3M 93A050117 |
| CAB-F-M12-17P05 IP67 FLEX CAB TO CBX 5M 93A050118 |
| CAB-GD03 M12 17P 3M isolated wires 95A900052 |
| CAB-GD03 M12 F/L 3M 93A050076 |
| CAB-GD05 M12 17P 5M isolated wires 95A900053 |
| CAB-GD05 M12 F/L 5M 93A050077 |
| CAB-GD10 M12 F/L 10M 93A050078 |
| Cable, PWR & I/O, CAB-DS10-S, P-Series to CBX (DB25), 10m 93A051390 |
| CAB-M12-19P-17P ADAPTER M410 to M410N 93A050132 |
| ETH to USB HID KEYBRD CONVERTER CBL 93A050146 |
| SERIAL RS232 HID E KEYBRD CONVERTER CBL 93ACC0268 |
