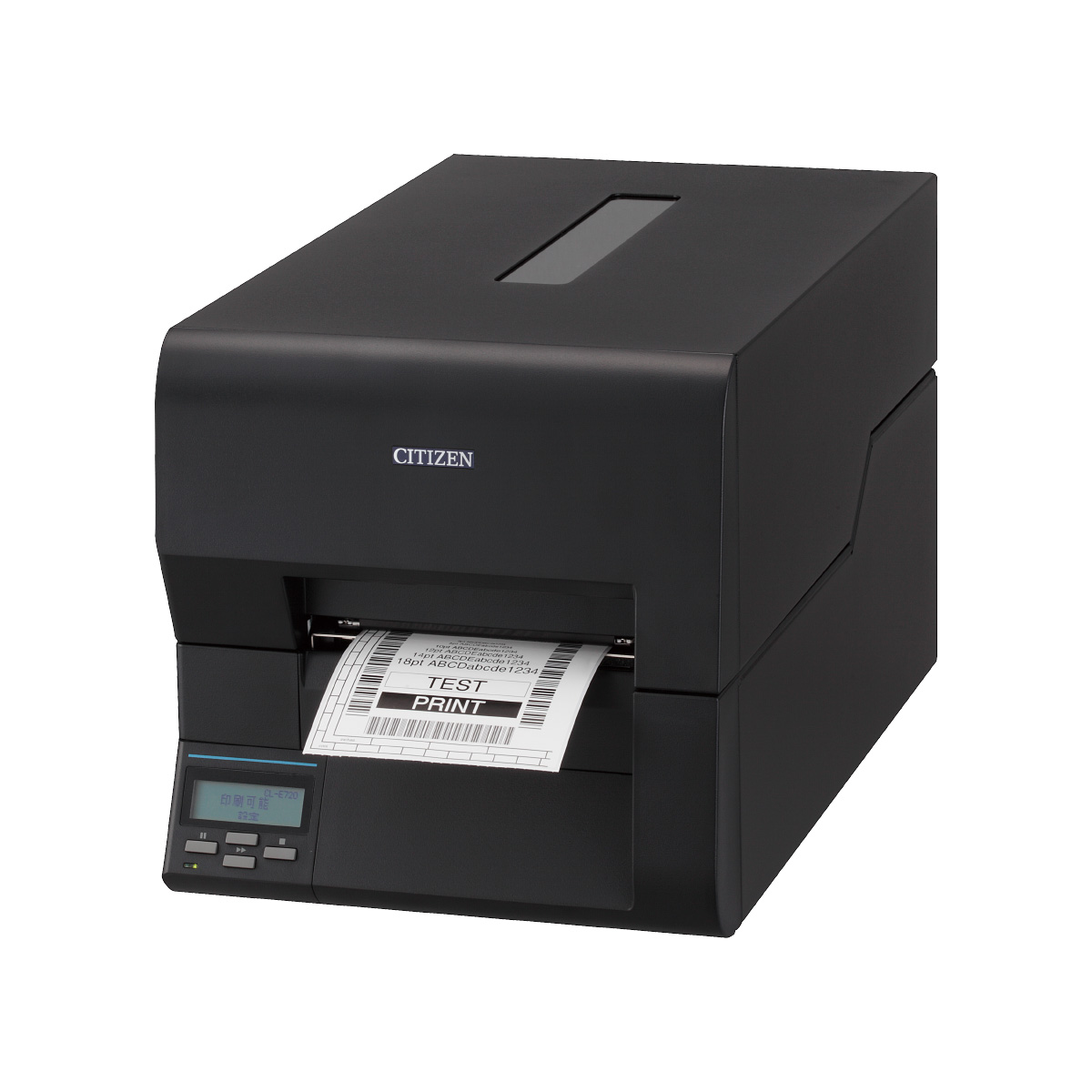

Citizen Label Printers CL-E730

CL-E720/CL-E730

Features

New standard model based on a new platform. Wired LAN is also equipped as standard.

Paper Width : 19.5 to 118mm

Print Method:Thermal/Thermal Transfer Method

Functions

Printing Speed: up to 150mm/sec.

Metal Chassis

Thermal Transfer

Thermal

Applications

Features

High Quality Printing

Equipped with an ARC mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.
(ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

Front-Access Structure

All operations are possible from the front face of the printer.

Equipped with a High-Speed CPU

Features a 32-bit 400MHz high-speed CPU

Software

Supports Windows drivers. (BarTender barcode generation software is recommended)

Wired LAN equipped as standard

In addition to USB, wired LAN is equipped as standard.
Serial and wireless LAN can also be equipped as options.

Features a paper holder that makes it easy to change heavy paper

Acquired Energy Star certification (power-saving design)

ARCP mechanism: High stability, High quality Print

Equipped with an ARCP mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.

(ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

Good for small label, severe print positionlabel

Support to use variety of ribbon & paper

ARCP: Active Ribbon Control & Positioning

Mechanism adjusts ribbon tension constantly

Label : Pulling ⇒ Constant adjustment

Label : Forwarding ⇒ Constant adjustment

Front-Open Structure：Top class usability in industrial category

All operations are possible from the front face of the printer.
Setting, adjustment, and replacement can be done quickly, reducing total work time.

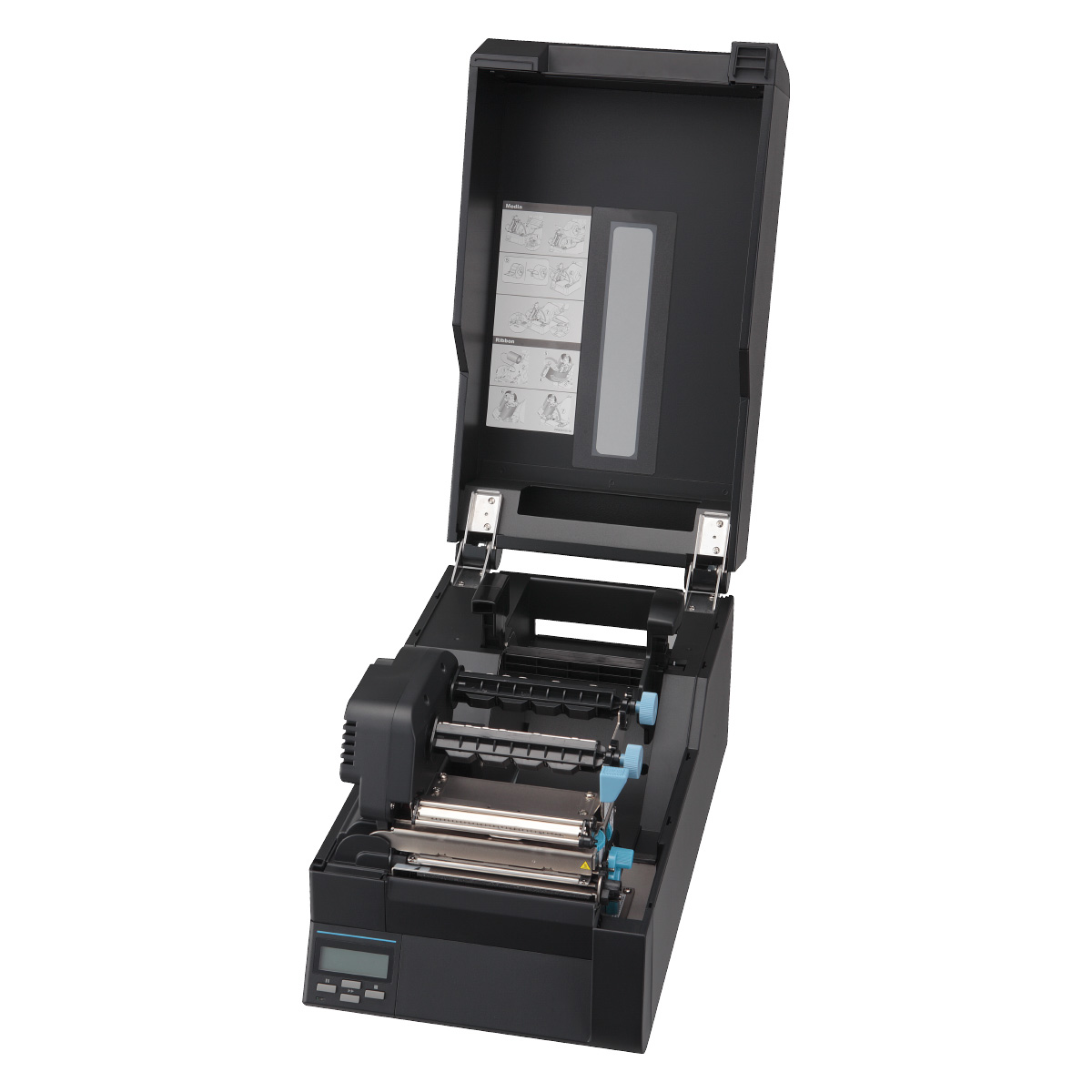

Wide open head, Flat Media Path:
Setting is extremely easy as the head opens wide with simple paper path.

Small Actual Footprint:
Printers can be installed side-by-side since no need to open in the side.

Safety＆Smooth Cover:
Cover can be fixed any position.
Check mechanism and paper status and operate the touch panel during the cover open.

Intuitive and Useful operation panel

Significant improvement in visibility

Hard key prepared for frequent use button such as FEED and STOP.
Backlit button: Easy to see in dark environment
Corner LED: Printer status visible from the side. Power/Error.

Easy to see and use operation panel
Main Menu: Easily check current settings

Header Info: Network status, Standard I/F, Option I/F, Keyboard Lock etc.
Custom Info: Model No., IP address, Global Config Number at all times.
Shortcuts: Quickly change settings.

Increased efficiency in label printing.

Setup Wizard: Easy to set up by looking guide and wizard.
Quick Info: Quickly check main specifications and settings.
Preview: Quickly check jobs and process tasks.

Easy to set by USB flash drive

Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
For exporting you can attach explanation to the settings.

Firmware Update: Efficiency for kitting works.

Troubleshoot: reducing loss time

WEB Guide: resolve errors by referring to the web page from the QRcode®.

Illustration Guide: Illustrate help you to understand procedures.

STANDALONE PRINTING:

Enable to print without the computer.
Stand alone function without programming

“Standalone Forms Print” function:

Easy standalone operation without programming*1
By installing Standalone Forms, Enable to print without the computer*2
Execute the print into label format stored.
Standalone Forms can be imported using USB Flash drive.

Supports three different formats.

Scan data printing: Input data ⇒Print on label format stored in the printer*3
CSV File Conversion Printing: Input data ⇒Print the data that look for the data in CSV file*3
CSV File printing by batch: CSV in USB flash drive⇒Print all data in CSV file by batch

*1: Create Standalone Forms with Layout Editor.
*2: Standalone Forms can be installed on multiple devices
*3: Data source: Scanner, other interface.

CSV File Conversion Printing:

Scan the barcode to read the data.
Look for the data in CSV and matched data will be used for printing.
Convert the data.
Print the label.

Remote Maintenance: Manage multiple printers remotely*1

Increased management & support efficiency

Remote monitoring

Counter: print distance, cut times
Confirm Firm Ver.
Printer status
Jobmanagement & history

Remote Maintenance

Firmware Update
Printer setting Backup/Restore
Send files: Com1mand, LOGO, Printing data

*1: When us Using the Option Interface board.

Manage multiple printers from Citizen’s cloud server remotely.
Printer registration, Search and filter by criteria.
FW can be updated at specified times

Easy Maintenance: Reduce maintenance time

Head/Platen:

Easy parts replacement and cleaning
①Head opens 85 degrees. Coveropens90 degrees more.

Easy disassembly and installation
②Head: Screwdriver only

③Platen: No tool required

Option Parts: Easier to install than previous model.

Cutter/Peeler:
④ ⑤Tool free ⑥From 2 screws to just 1 screw at upper position.

Option Interface Board:
⑦new insertion guide has been added to make positioning easier. Click in interfaces: no cable folding required.

CITIZEN LinkServer：

CITIZEN LinkServer for Android:

by USB connection/Android Application/For smartphones and stablets

Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App “Citizen LinkServer” is installed.

CITIZEN LinkServer(Web Monitor):

by LAN connection/Platform(OS) Free/Web browser Utility

For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.

Standard Support for SAP ERP* System

*ERP: Enterprise Resource Planning

Standard Support for rMQR Code®

New QR Code® “rMQR Code®” is supported.

This code is ideal for narraw and long spaces.

Larger capacity than Micro QR Code, max. 361 characters.

Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin

*Please contact us for details regarding rMQR Code®.

*QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.

Support to use variety of paper

Adjustable sensor:

Equipped with Adjustable sensorand Front Fix sensor

Gap and Black Mark detect positions can be adjusted in the paper width direction.

Support fan-fold paper:

Support fan-fold paper by insertingfrom the back from the main unit.

Option Cutter, Peeler Unit:

Ready for rotary cutter, pizza cutterand peeler. ＊Not factory option

Main Applications

Tickets

Labels

Barcode Printing

Used in the following industries

Manufacturing

Food

Distribution

Logistics

Basic Functions

Features

Supported Interfaces

Available Drivers

Supported Platform by SDKs

Specifications

Print Method	Thermal/Thermal Transfer Printing
Printing Speed	51 to 150mm/sec.
Resolution	CL-E720 : 203dpi CL-E730 : 300dpi
Paper Width	CL-E720: 19.5 to 118mm CL-E730: 19.5 to 118mm (Effective Printing Width: up to 104mm)
Paper Pitch	CL-E720: 6.35 to 2,539mm CL-E730: 6.35 to 1,879mm (When using fixed sensor)
Paper Diameter	Exterior Diameter: up to 203φ Paper Core Diameter: 38 to 76mm
Paper Thickness	0.0635 to 0.254mm
Paper Detection Sensor	Adjustable sensor
Barcodes	One Dimensional: Code 39/93/128, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, HIBC (Code 39 using Modulus 43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus 10), Plessey, CASE CODE, UPC2DIG ADD, UPC5DIG ADD, Telepen, ITF14, ITF16, Industrial 2 of 5, COOP 2 of 5, GS1*1 Two Dimensional: UPS Maxi Code, PDF-417, Data Matrix, QR code
Equipped Font	Fixed Pitch Font, OCR Font, Proportional Font
Command	Datamax Emulation, Zebra Emulation
Interfaces	Standard: Wired LAN, USB (Rev 2.0) Options: Serial (RS-232C), Wireless LAN (IEEE802.11a/b/g/n)
Power Supply Voltage	AC100V, 50/60Hz
Mass	Approx. 11kg
External Dimensions	250 (W) x 458 (D) x 261 (H) mm
Reliability	MCBF:500km or 5years(Recommended media), Print head life:50km(Recommended media), Platen life:100km(Recommended media)
Safety Standards	UL, CSA, VCCI: Class A, FCC: Class A
Accessories	Labels for Testing AC Cord Quick Start Guide Paper Holder Guide Type with mounted Paper Holder only Paper Holder Type with mounted Paper Holder only Head Cleaner

*1 Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

Dimensions

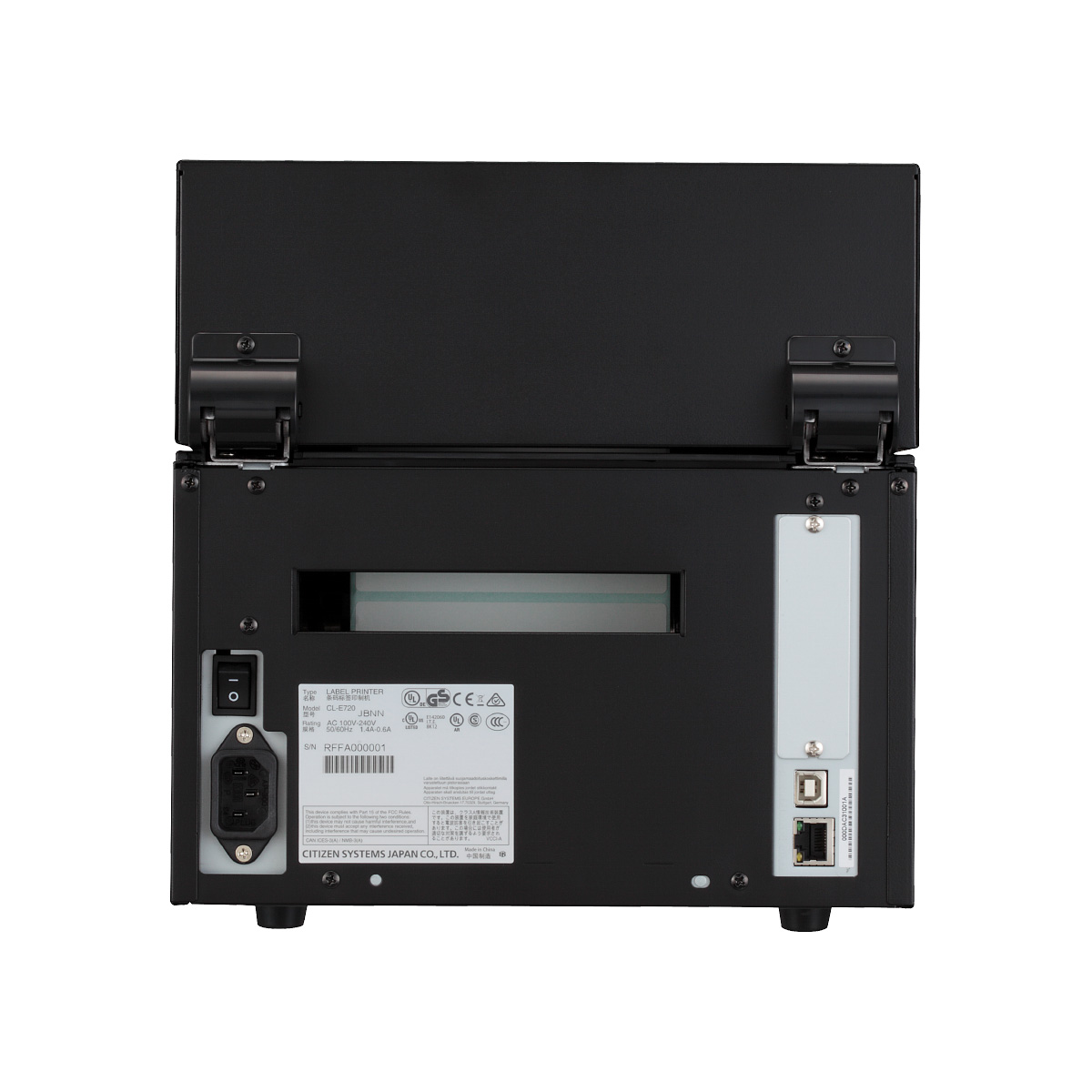

Interfaces

Equipped as Standard

USB

Serial

Wired LAN

Options

Serial

Wireless LAN

Bluetooth
