Citizen Label Printers CL-S6621

CL-S6621

Features

The new dimension in desktop label printing

Paper Width : 168mm

Print Method:
Thermal Transfer + Direct Thermal

Functions

Printing Speed: up to 150mm/sec.

Auto Cutter

Thermal Transfer

Thermal

Applications

Features

Half size, half price

Our unique 6-inch CL‑S6621 label printer sets a new standard for desktop machines. Smaller and more efficient than any other comparable printer, the CL‑S6621 offers automatic Cross-Emulation, for easy integration and compatibility, and features our advanced Hi‑Lift™ Mechanism. The CL‑S6621 delivers precision printing with fast media loading and ease of use, making it the perfect solution for tough, reliable and high volume label printing.

Paper load: Durable design

Citizen’s proven Hi-Lift™ all-metal mechanism

Printing Speed: Fast print out

150 mm per second

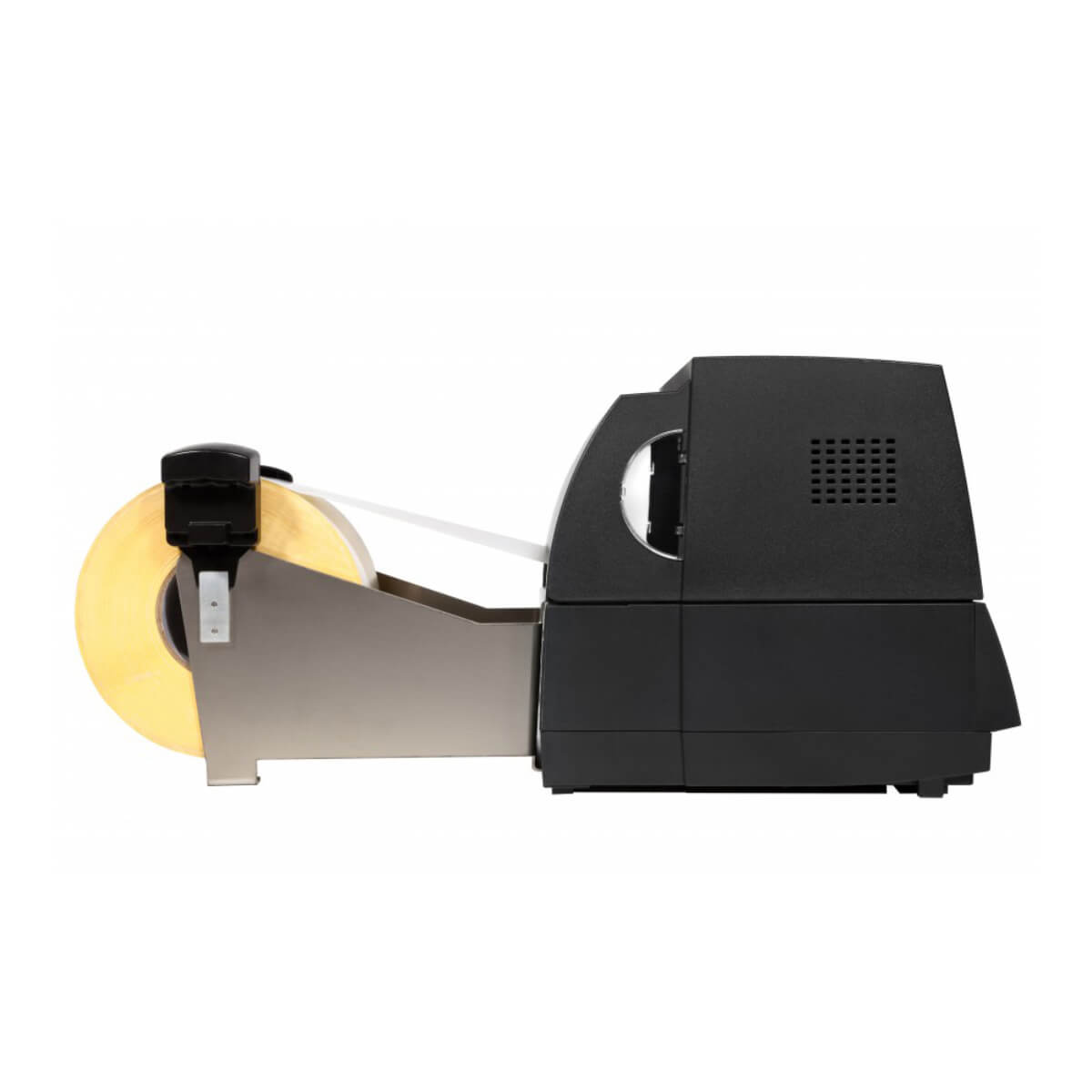

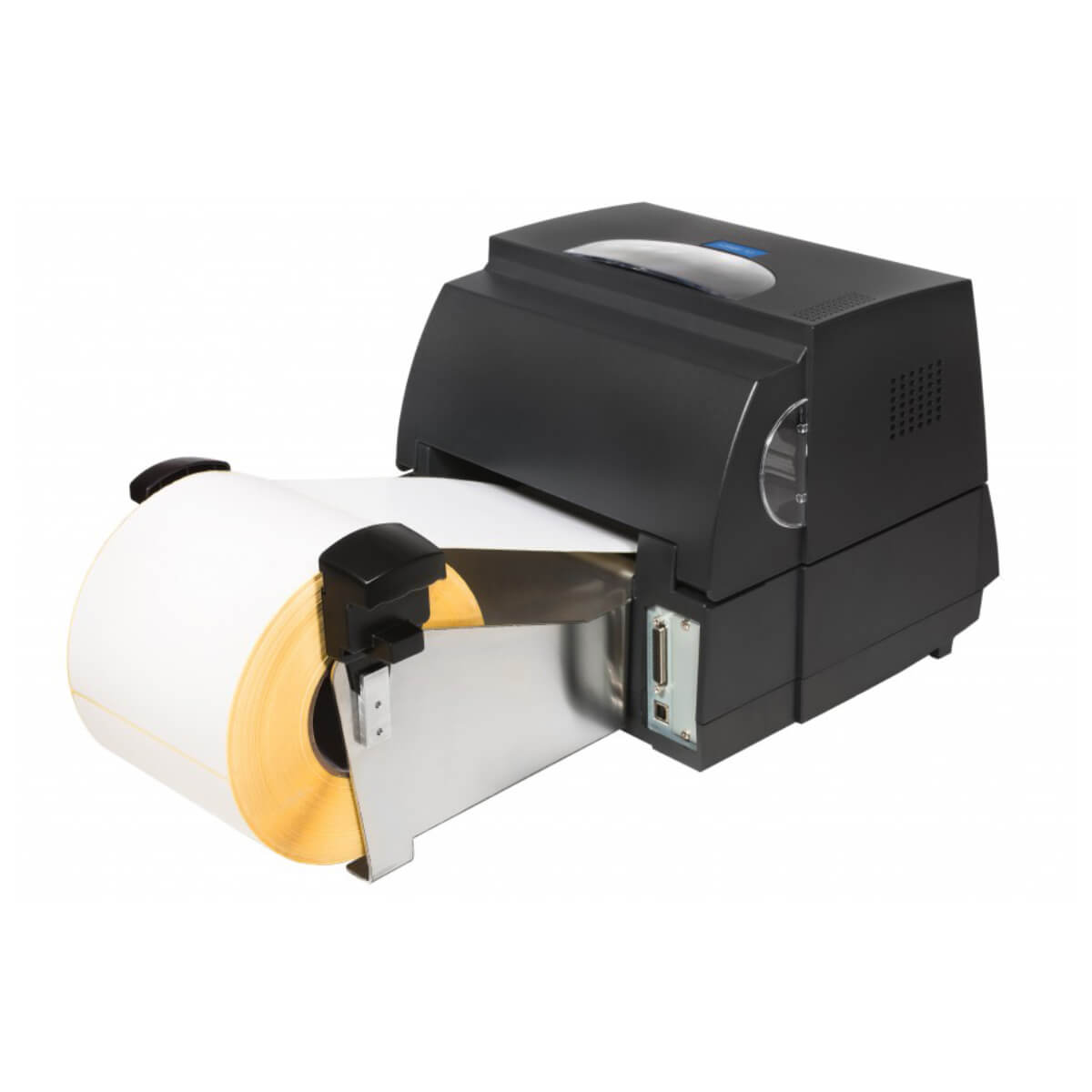

Media support: Large media capacity

Holds rolls up to 125 mm

Ribbon options: Wide range of ribbon options

Uses up to 360 metres inside and outside wound ribbons

Hi-Open™ case for vertical opening, no increase in footprint and safe closing.

No more unreadable labels

The ARCP™ ribbon control technology assures clear prints.

Paper-saving function (ECO Printing)

Saves paper by means of top margin deletion, line space compression, and letter size reduction.

Low space requirement

Integrated power supply keeps work area tidy.

Energy

Internal power supply for reliability

Media sensor

Adjustable media sensor

Tear bar

Standard tear-bar for perforated tags

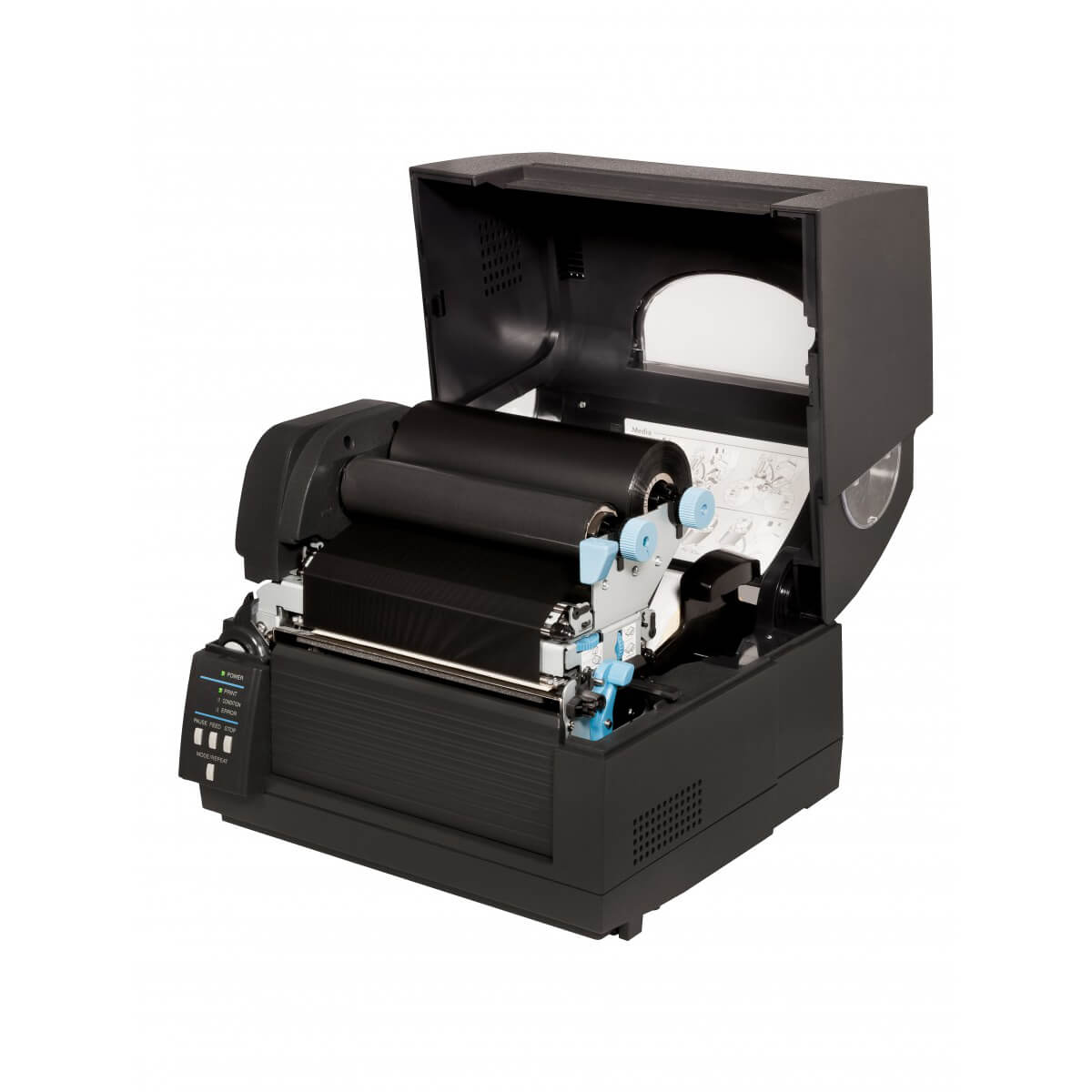

ARCP mechanism: High stability, High quality Print

Equipped with an ARCP mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.

(ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

Good for small label, severe print positionlabel

Support to use variety of ribbon & paper

ARCP: Active Ribbon Control & Positioning

Mechanism adjusts ribbon tension constantly

Label : Pulling ⇒ Constant adjustment

Label : Forwarding ⇒ Constant adjustment

Front-Open Structure：Top class usability in industrial category

All operations are possible from the front face of the printer.
Setting, adjustment, and replacement can be done quickly, reducing total work time.

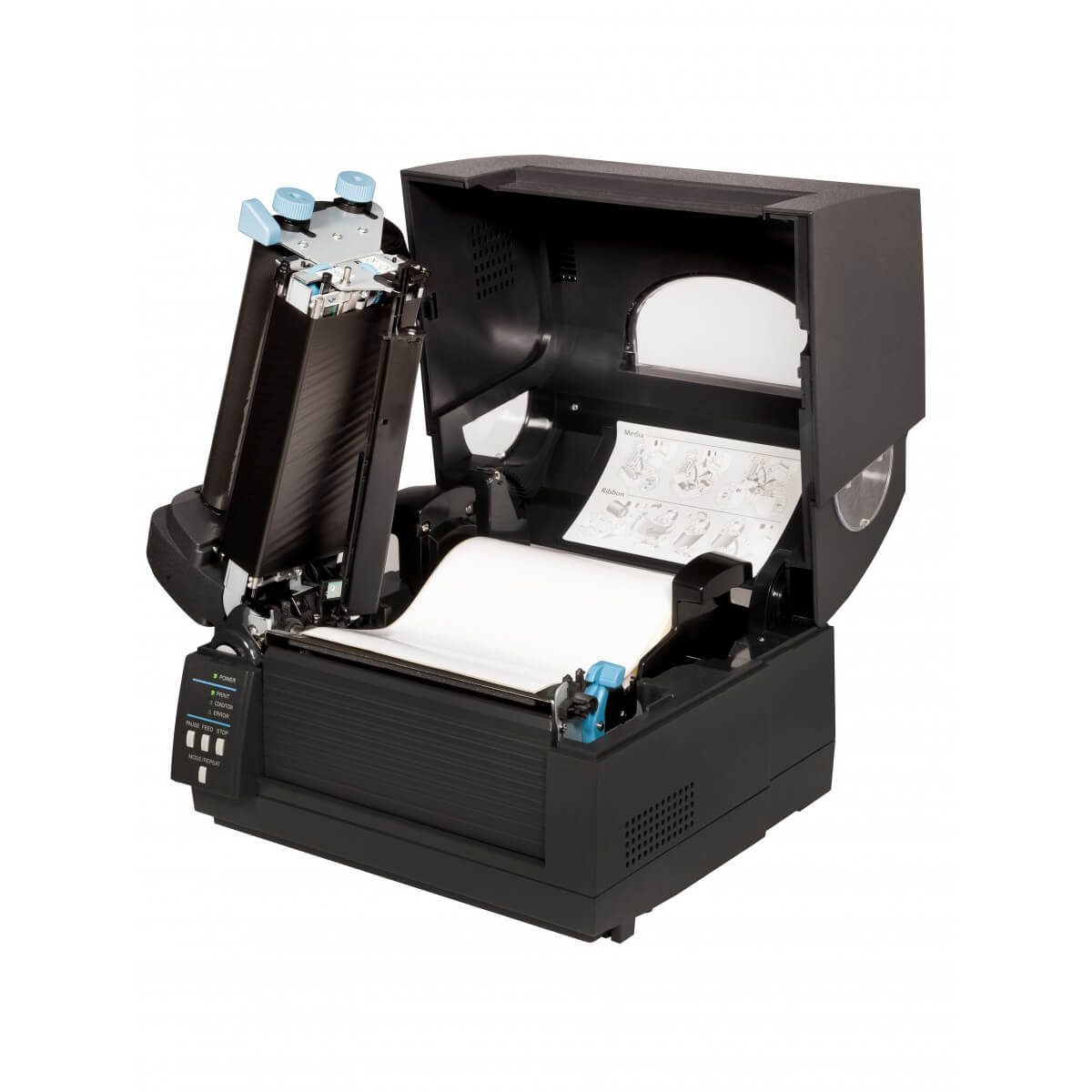

Wide open head, Flat Media Path:
Setting is extremely easy as the head opens wide with simple paper path.

Small Actual Footprint:
Printers can be installed side-by-side since no need to open in the side.

Safety＆Smooth Cover:
Cover can be fixed any position.
Check mechanism and paper status and operate the touch panel during the cover open.

Intuitive and Useful operation panel

Significant improvement in visibility

Hard key prepared for frequent use button such as FEED and STOP.
Backlit button: Easy to see in dark environment
Corner LED: Printer status visible from the side. Power/Error.

Easy to see and use operation panel
Main Menu: Easily check current settings

Header Info: Network status, Standard I/F, Option I/F, Keyboard Lock etc.
Custom Info: Model No., IP address, Global Config Number at all times.
Shortcuts: Quickly change settings.

Increased efficiency in label printing.

Setup Wizard: Easy to set up by looking guide and wizard.
Quick Info: Quickly check main specifications and settings.
Preview: Quickly check jobs and process tasks.

Easy to set by USB flash drive

Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
For exporting you can attach explanation to the settings.

Firmware Update: Efficiency for kitting works.

Troubleshoot: reducing loss time

WEB Guide: resolve errors by referring to the web page from the QRcode®.

Illustration Guide: Illustrate help you to understand procedures.

STANDALONE PRINTING:

Enable to print without the computer.
Stand alone function without programming

“Standalone Forms Print” function:

Easy standalone operation without programming*1
By installing Standalone Forms, Enable to print without the computer*2
Execute the print into label format stored.
Standalone Forms can be imported using USB Flash drive.

Supports three different formats.

Scan data printing: Input data ⇒Print on label format stored in the printer*3
CSV File Conversion Printing: Input data ⇒Print the data that look for the data in CSV file*3
CSV File printing by batch: CSV in USB flash drive⇒Print all data in CSV file by batch

*1: Create Standalone Forms with Layout Editor.
*2: Standalone Forms can be installed on multiple devices
*3: Data source: Scanner, other interface.

CSV File Conversion Printing:

Scan the barcode to read the data.
Look for the data in CSV and matched data will be used for printing.
Convert the data.
Print the label.

Remote Maintenance: Manage multiple printers remotely*1

Increased management & support efficiency

Remote monitoring

Counter: print distance, cut times
Confirm Firm Ver.
Printer status
Jobmanagement & history

Remote Maintenance

Firmware Update
Printer setting Backup/Restore
Send files: Com1mand, LOGO, Printing data

*1: When us Using the Option Interface board.

Manage multiple printers from Citizen’s cloud server remotely.
Printer registration, Search and filter by criteria.
FW can be updated at specified times

Easy Maintenance: Reduce maintenance time

Head/Platen:

Easy parts replacement and cleaning
①Head opens 85 degrees. Coveropens90 degrees more.

Easy disassembly and installation
②Head: Screwdriver only

③Platen: No tool required

Option Parts: Easier to install than previous model.

Cutter/Peeler:
④ ⑤Tool free ⑥From 2 screws to just 1 screw at upper position.

Option Interface Board:
⑦new insertion guide has been added to make positioning easier. Click in interfaces: no cable folding required.

CITIZEN LinkServer：

CITIZEN LinkServer for Android:

by USB connection/Android Application/For smartphones and stablets

Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App “Citizen LinkServer” is installed.

CITIZEN LinkServer(Web Monitor):

by LAN connection/Platform(OS) Free/Web browser Utility

For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.

Standard Support for SAP ERP* System

*ERP: Enterprise Resource Planning

Standard Support for rMQR Code®

New QR Code® “rMQR Code®” is supported.

This code is ideal for narraw and long spaces.

Larger capacity than Micro QR Code, max. 361 characters.

Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin

*Please contact us for details regarding rMQR Code®.

*QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.

Support to use variety of paper

Adjustable sensor:

Equipped with Adjustable sensorand Front Fix sensor

Gap and Black Mark detect positions can be adjusted in the paper width direction.

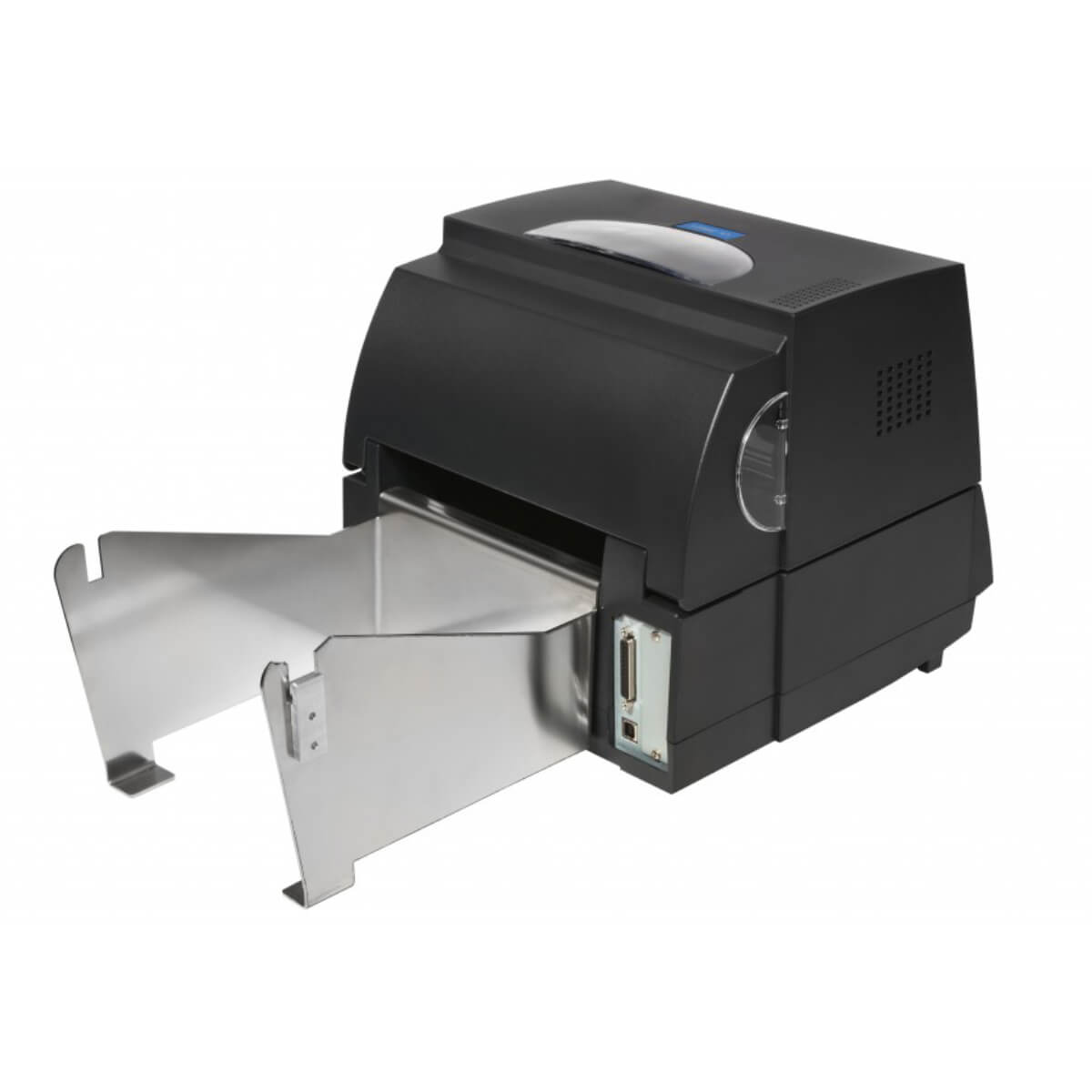

Support fan-fold paper:

Support fan-fold paper by insertingfrom the back from the main unit.

Option Cutter, Peeler Unit:

Ready for rotary cutter, pizza cutterand peeler. ＊Not factory option

Main Applications

Courier

Logistic / Transport

Manufacturing

Warehousing

Used in the following industries

Manufacturing

Food

Distribution

Healthcare / Clinical

Basic Functions

Features

Supported Interfaces

Available Drivers

Supported Platform by SDKs

Specifications

Printing Method	Thermal Transfer + Direct Thermal
Maximum Printing Speed	150 mm/sec.
Print Width	168 mm
Media Width (min to max)	50 to 178 mm
Media Thickness (min to max)	63.5 to 254 μm
Media Sensor	Fully adjustable gap, notch, reflective black mark and media low
Media Length (min to max)	6.35 to 812.8 mm
Roll Size (max), Core Size	Inside diameter 125 mm, Core size 25.4 to 76 mm
Case	Hi-Open™ industrial ABS case with safe close
Mechanism	Hi-Lift™ metal mechanism with wide opening head
Control panel	4 buttons and 4 LEDs
Flash (Non-Volatile Memory)	8 MB total, 1 MB available for user
Drivers and software	Free-of-charge on CD with printer, including support for various platforms
External Dimensions	303(W) x 290(D) x 273(H) mm
Mass	Approx. 7.9 Kg
Warranty	2 years on printer. 6 months or 50 Kms printhead
Emulations (Languages)	Full Datamax® W-Class®, DMX800® Cross-Emulation™ – automatic switching between Zebra® ZPL-II® and Datamax® I-Class®, DMX400 Zebra® ZPL-II® BASIC interpreter for data stream processing and ticketing emulations
Ribbon size	74mm maximum outside diameter. 360 metres length. 25mm core
Ribbon winding & type	Ink side in or out, switch selectable. Wax, Wax/Resin or Resin Type
Ribbon system	ARCP™ automatic ribbon tension adjustment
RAM (standard Memory)	32 MB total, 1 MB available for user
Cutter	Guillotine type, Dealer Installable
Resolution	203 dpi
Main Interface	Dual Interface Serial (RS-232C), USB (version 2.0, full speed)
Interfaces	Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps Ethernet (10/100 BaseT) Parallel (IEEE 1284 compliant)

*1 Please contact us for details regarding GS1.

Dimensions

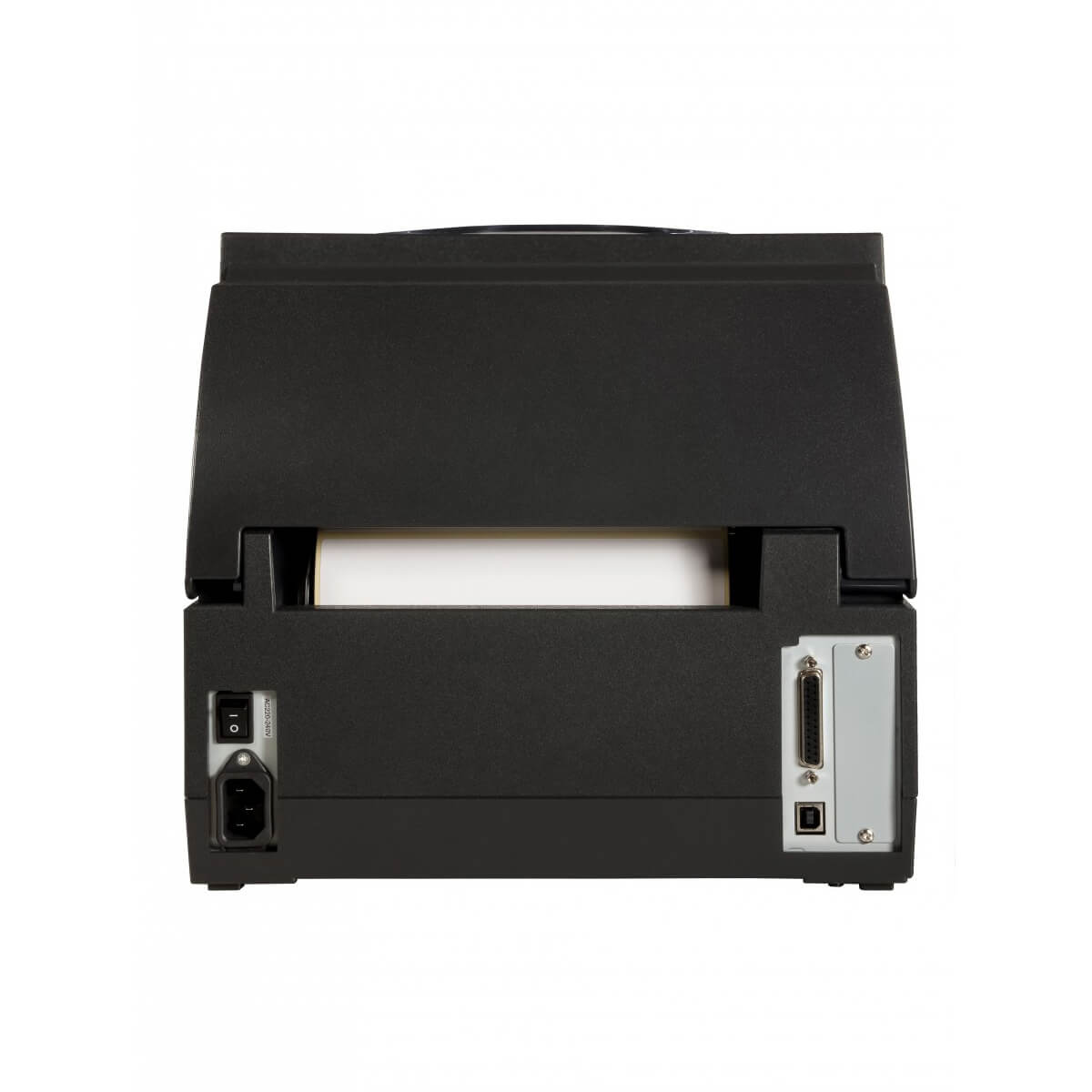

Interfaces

Equipped as standard with USB and serial interfaces. Others are available as options sold separately.

Equipped as Standard

USB

Serial

Wired LAN

Options Sold Separately

Wired LAN

Wireless LAN

Bluetooth
