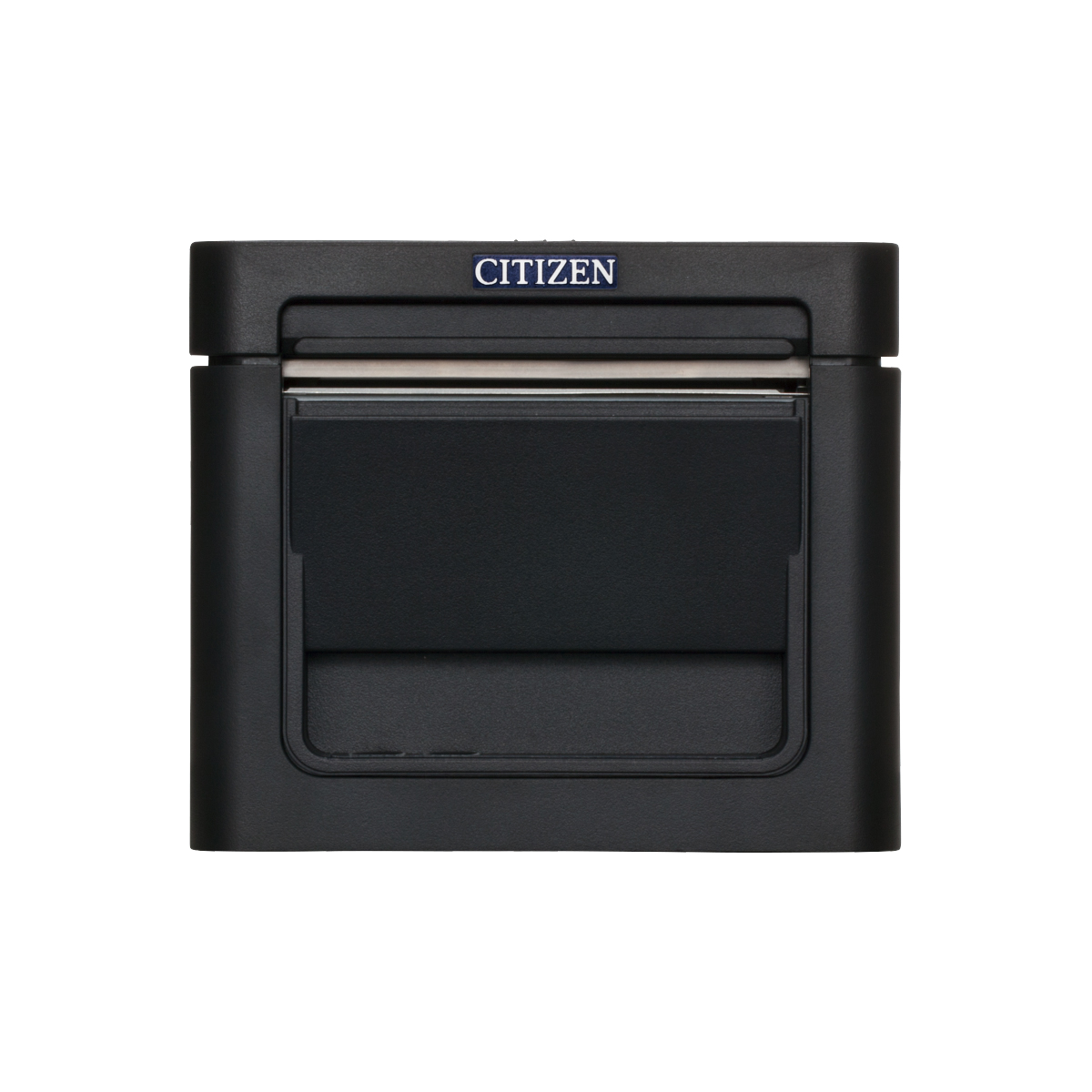

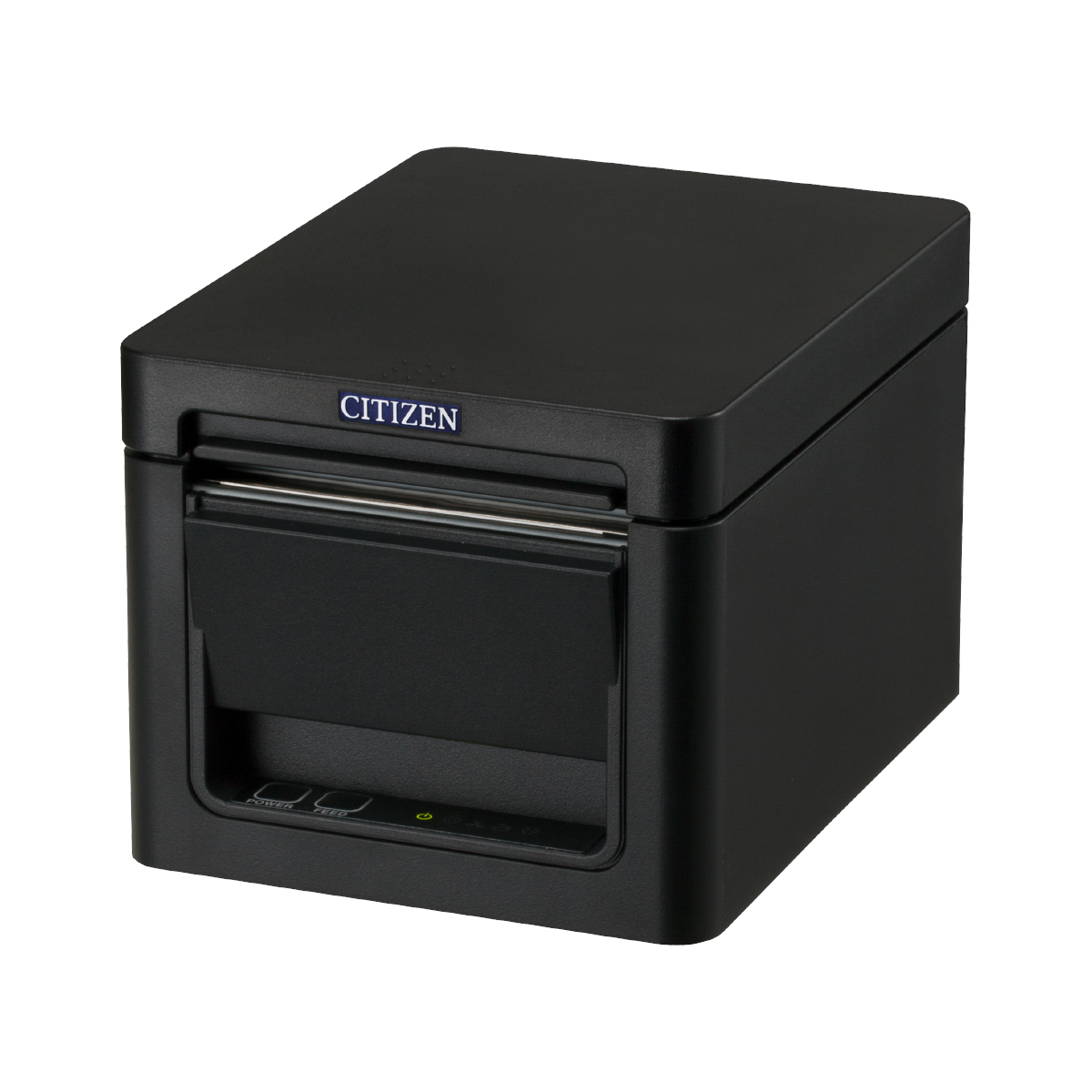

Citizen Receipt Printer CT-D150

CT-D150 / CT-D151

Features

Measuring 108mm in height and 125mm in width, it’s one of the smallest in the industry. A new model with outstanding design and practical characteristics.

Paper Width : 58 to 80mm

Print Method:
Direct Thermal Printing

Functions

Printing Speed: up to 250mm/sec. *1

Printing Speed: up to 300mm/sec. *2

Auto Cutter

Buzzer

Cash Drawer Kicker

Drop-in Paper Loading

Black Mark Sensor *2

Auto Cutter

Buzzer

Cash Drawer Kicker

Drop-in Paper Loading

Black Mark Sensor *2

Applications

Features

A business-use printer with a refined design that fits right in with a smartphone or tablet.

One of the industry’s smallest 3-inch (80mm) models in terms of height and width

Small footprint saves space around the cash register

Easy to open

Easy maintenance of head and cutter.

Capable of printing multiple international character sets (Traditional Chinese, Simplified Chinese, Japanese, and Hangul alphabet).

Wide variety of interfaces available
(USB/Serial/Wired LAN/Wireless LAN/Bluetooth)

Various SDKs (software development kit) provided free of charge

Equipped with paper save mode
* Can be printed by designating the character address from the app

Can handle thin 53μm receipt paper

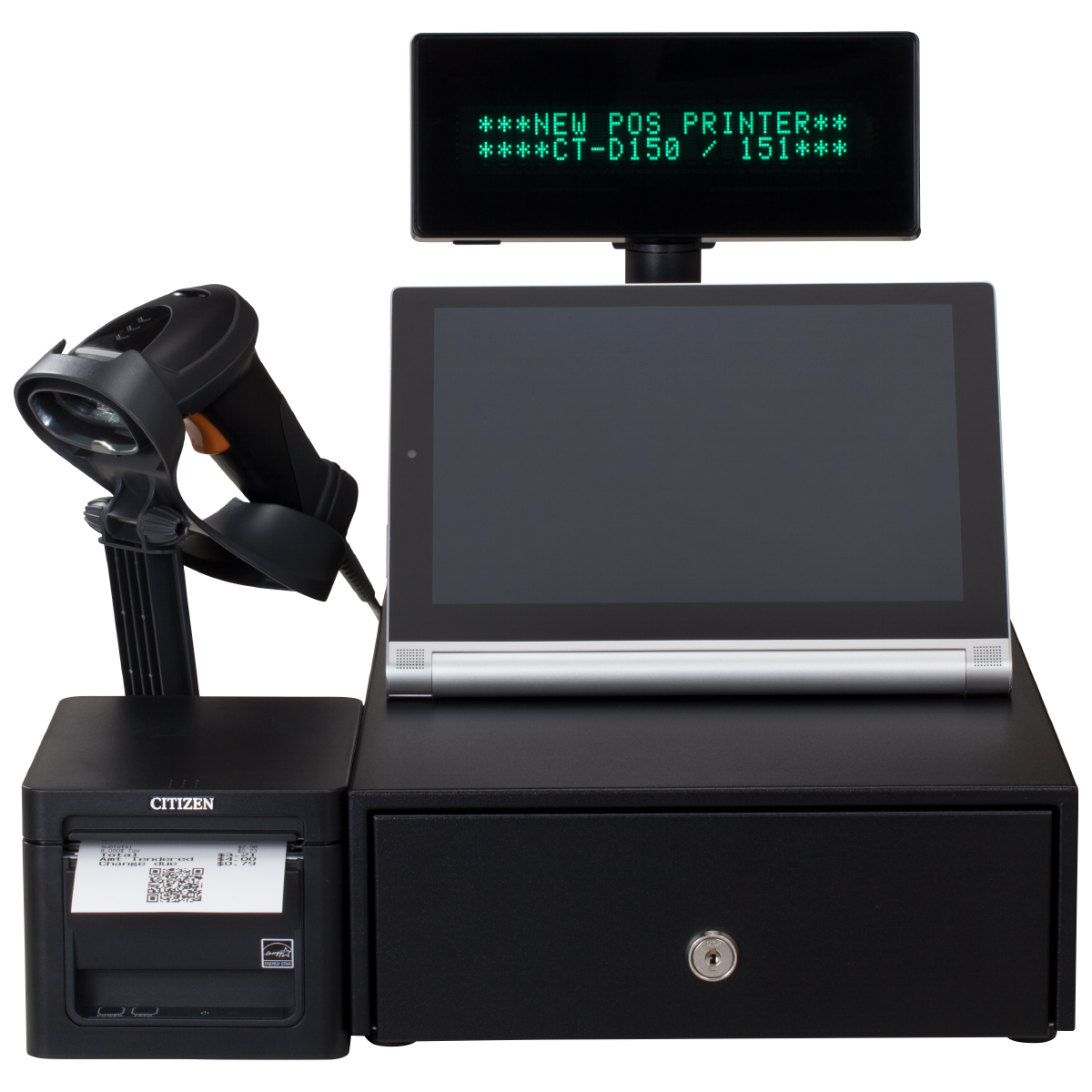

Cash drawer available to match the printer’s dimensions

Supports label printing (CT-D151 only)

ARCP mechanism: High stability, High quality Print

Equipped with an ARCP mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.

(ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

Good for small label, severe print positionlabel

Support to use variety of ribbon & paper

ARCP: Active Ribbon Control & Positioning

Mechanism adjusts ribbon tension constantly

Label : Pulling ⇒ Constant adjustment

Label : Forwarding ⇒ Constant adjustment

Front-Open Structure：Top class usability in industrial category

All operations are possible from the front face of the printer.
Setting, adjustment, and replacement can be done quickly, reducing total work time.

Wide open head, Flat Media Path:
Setting is extremely easy as the head opens wide with simple paper path.

Small Actual Footprint:
Printers can be installed side-by-side since no need to open in the side.

Safety＆Smooth Cover:
Cover can be fixed any position.
Check mechanism and paper status and operate the touch panel during the cover open.

Intuitive and Useful operation panel

Significant improvement in visibility

Hard key prepared for frequent use button such as FEED and STOP.
Backlit button: Easy to see in dark environment
Corner LED: Printer status visible from the side. Power/Error.

Easy to see and use operation panel
Main Menu: Easily check current settings

Header Info: Network status, Standard I/F, Option I/F, Keyboard Lock etc.
Custom Info: Model No., IP address, Global Config Number at all times.
Shortcuts: Quickly change settings.

Increased efficiency in label printing.

Setup Wizard: Easy to set up by looking guide and wizard.
Quick Info: Quickly check main specifications and settings.
Preview: Quickly check jobs and process tasks.

Easy to set by USB flash drive

Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
For exporting you can attach explanation to the settings.

Firmware Update: Efficiency for kitting works.

Troubleshoot: reducing loss time

WEB Guide: resolve errors by referring to the web page from the QRcode®.

Illustration Guide: Illustrate help you to understand procedures.

STANDALONE PRINTING:

Enable to print without the computer.
Stand alone function without programming

“Standalone Forms Print” function:

Easy standalone operation without programming*1
By installing Standalone Forms, Enable to print without the computer*2
Execute the print into label format stored.
Standalone Forms can be imported using USB Flash drive.

Supports three different formats.

Scan data printing: Input data ⇒Print on label format stored in the printer*3
CSV File Conversion Printing: Input data ⇒Print the data that look for the data in CSV file*3
CSV File printing by batch: CSV in USB flash drive⇒Print all data in CSV file by batch

*1: Create Standalone Forms with Layout Editor.
*2: Standalone Forms can be installed on multiple devices
*3: Data source: Scanner, other interface.

CSV File Conversion Printing:

Scan the barcode to read the data.
Look for the data in CSV and matched data will be used for printing.
Convert the data.
Print the label.

Remote Maintenance: Manage multiple printers remotely*1

Increased management & support efficiency

Remote monitoring

Counter: print distance, cut times
Confirm Firm Ver.
Printer status
Jobmanagement & history

Remote Maintenance

Firmware Update
Printer setting Backup/Restore
Send files: Com1mand, LOGO, Printing data

*1: When us Using the Option Interface board.

Manage multiple printers from Citizen’s cloud server remotely.
Printer registration, Search and filter by criteria.
FW can be updated at specified times

Easy Maintenance: Reduce maintenance time

Head/Platen:

Easy parts replacement and cleaning
①Head opens 85 degrees. Coveropens90 degrees more.

Easy disassembly and installation
②Head: Screwdriver only

③Platen: No tool required

Option Parts: Easier to install than previous model.

Cutter/Peeler:
④ ⑤Tool free ⑥From 2 screws to just 1 screw at upper position.

Option Interface Board:
⑦new insertion guide has been added to make positioning easier. Click in interfaces: no cable folding required.

CITIZEN LinkServer：

CITIZEN LinkServer for Android:

by USB connection/Android Application/For smartphones and stablets

Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App “Citizen LinkServer” is installed.

CITIZEN LinkServer(Web Monitor):

by LAN connection/Platform(OS) Free/Web browser Utility

For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.

Standard Support for SAP ERP* System

*ERP: Enterprise Resource Planning

Standard Support for rMQR Code®

New QR Code® “rMQR Code®” is supported.

This code is ideal for narraw and long spaces.

Larger capacity than Micro QR Code, max. 361 characters.

Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin

*Please contact us for details regarding rMQR Code®.

*QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.

Support to use variety of paper

Adjustable sensor:

Equipped with Adjustable sensorand Front Fix sensor

Gap and Black Mark detect positions can be adjusted in the paper width direction.

Support fan-fold paper:

Support fan-fold paper by insertingfrom the back from the main unit.

Option Cutter, Peeler Unit:

Ready for rotary cutter, pizza cutterand peeler. ＊Not factory option

Main Applications

POS equipment

Measuring equipment/medical equipment

Printing from various instruments, terminals and machines

Used in the following industries

Financial

Retail

Distribution

Restaurants

Apparel

Basic Functions

Features

Supported Interfaces

* Ordering requires a separate consultation.
** CT-D151 only.

Available Drivers

Supported Platform by SDKs

Specifications

Model Name	CT-D150	CT-D151
Print Method	Direct Thermal Printing
Printing Width (Total Dot Number)	72mm(576dots)	72mm(576dots)、52.5mm(420dots)
Dot Density	Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed	250mm/sec.	300mm/sec. (Highest Speed, Printing Density Level 100%, 2,400 dots lines/sec.)
Line Spacing	4.25mm (1/6 inch) configurable by command
Paper	Paper Width: 58mm/80mm Paper Diameter: up to φ83mm Paper Thickness: 53 to 85μm (Paper tube inner diameter 12mm/outer diameter 18mm)
Number of Columns Printable *1	Font A: 48 columns (12×24 dots) Font B: 64 columns (9×24 dots) Font C: 72 columns (8×16 dots)	Font A: 48 columns (12×24 dots) Font B: 64 columns (9×24 dots) Font C: 72 columns (8×16 dots) Kanji Font A: 24 columns (24×24 dots) Kanji Font C: 36 columns (16×16 dots)
Character Size *2	Font A: 1.50×3.00mm Font B: 1.13×3.00mm Font C: 1.00×2.00mm	Font A: 1.50×3.00mm Font B: 1.13×3.00mm Font C: 1.00×2.00mm Kanji Font A: 3.00×3.00mm Kanji Font C: 2.00×2.00mm
Character Types	Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Kanji (JIS first, second, third, fourth level), Kana, JIS C 6226-1983, TCVN3, TCVN3 Caps, Thai Code11 1Pass, Thai Code11 3Pass, Thai Code18 1Pass, Thai Code18 3Pass, WPC1258, Korean, Simplified Chinese, Traditional Chinese
User Memory	384K bytes (user-made characters and logos can be registered)
Barcodes	Code3of9, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8(JAN-8),Codabar, ITF, CODE39, CODE93, CODE128, CODABAR(NW-7), PDF 417, QR Code, GS1-Databar, Composit Symb	UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1 *3
2D Barcodes	PDF417, QR CODE
Interfaces	Dual interfaces: USB + LAN or USB + Serial	Serial (RS-232C compliant) + USB, Bluetooth + USB, Wired LAN + USB
Operation Panel	5 Types of LED Lights
Input Buffer	4k bytes / 45 bytes
Power Supply Voltage	AC Type: AC100V – 240V
Power Consumption	Approx. 50W (when printing) Standby: 2W
Drawer Kick-Out	CDK / DK connector, RJ12, 2 drawer control	Compatible
Usage Environment	Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass	Approx. 1.0 kg	Approx. 1.3 kg
External Dimensions	125 (W) x 165 (D) x 108 (H) mm
AC Adapter Specifications	Input: AC100 to 240V 50/60Hz 150VA Output: DC24V 2.1A
Main Body Case Color	Cool White, Black
Reliability	Thermal Head: 200 million pulses, 150 km (An average of the head resistance fluctuation keeps under ±15%) Auto Cutter: 1.5 million cut (3 inch type: 53 μm ≤ Paper thickness ≤ 85 μm) 1.0 million cut (2 inch type: 53 μm ≤ Paper thickness ≤ 85 μm)	Thermal Head: 200 million pulses, 200 km (An average of the head resistance fluctuation keeps under ±15%) Auto Cutter: 2.0 million cut (3 inch type: 53 μm ≤ Paper thickness ≤ 85 μm) 1.5 million cut (2 inch type: 53 μm ≤ Paper thickness ≤ 85 μm)
Standards Compliance	FCC Class A, VCCI Class A
Utility Software	POS Printer Utility
Drivers	Windows, OPOS, POS for.NET, Java POS, Linux, CUPS
Accessories	AC Cord: ×1 Thermal Paper Roll for Testing AC Adapter: ×1 Quick Start Guide Partition Cable Cover

*1 Number of columns for printing can be changed with the memory switch.
*2 Actual characters may appear smaller, as the listed dimensions include the space within the font.
*3 Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

USB Power Save Mode

When connected to a host through USB, the printer’s power synchronizes with the host’s power, helping to conserve power as the host is switched ON and OFF.

Dimensions

(Unit: mm)

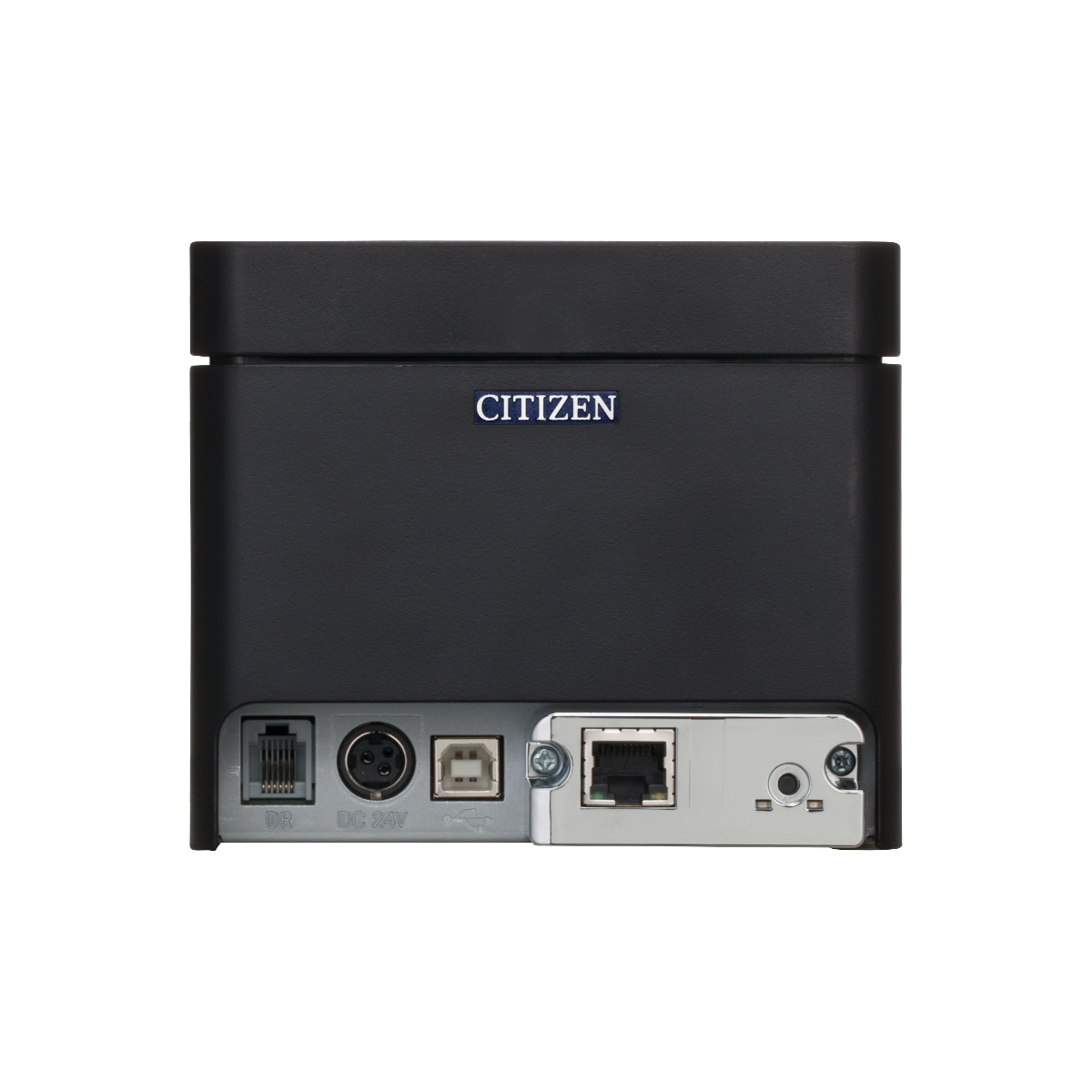

Interfaces

Serial, Wired LAN, Bluetooth, and USB Host + Bluetooth are factory options from which 1 method can be chosen (USB is equipped as standard).

Equipped as Standard

USB

Serial

Parallel

Factory Options

One of the following connection methods can be selectedReceipt Printers

Serial

Wired LAN

Wireless LAN

Bluetooth

USB Host + Wired LAN

USB Host + Bluetooth
