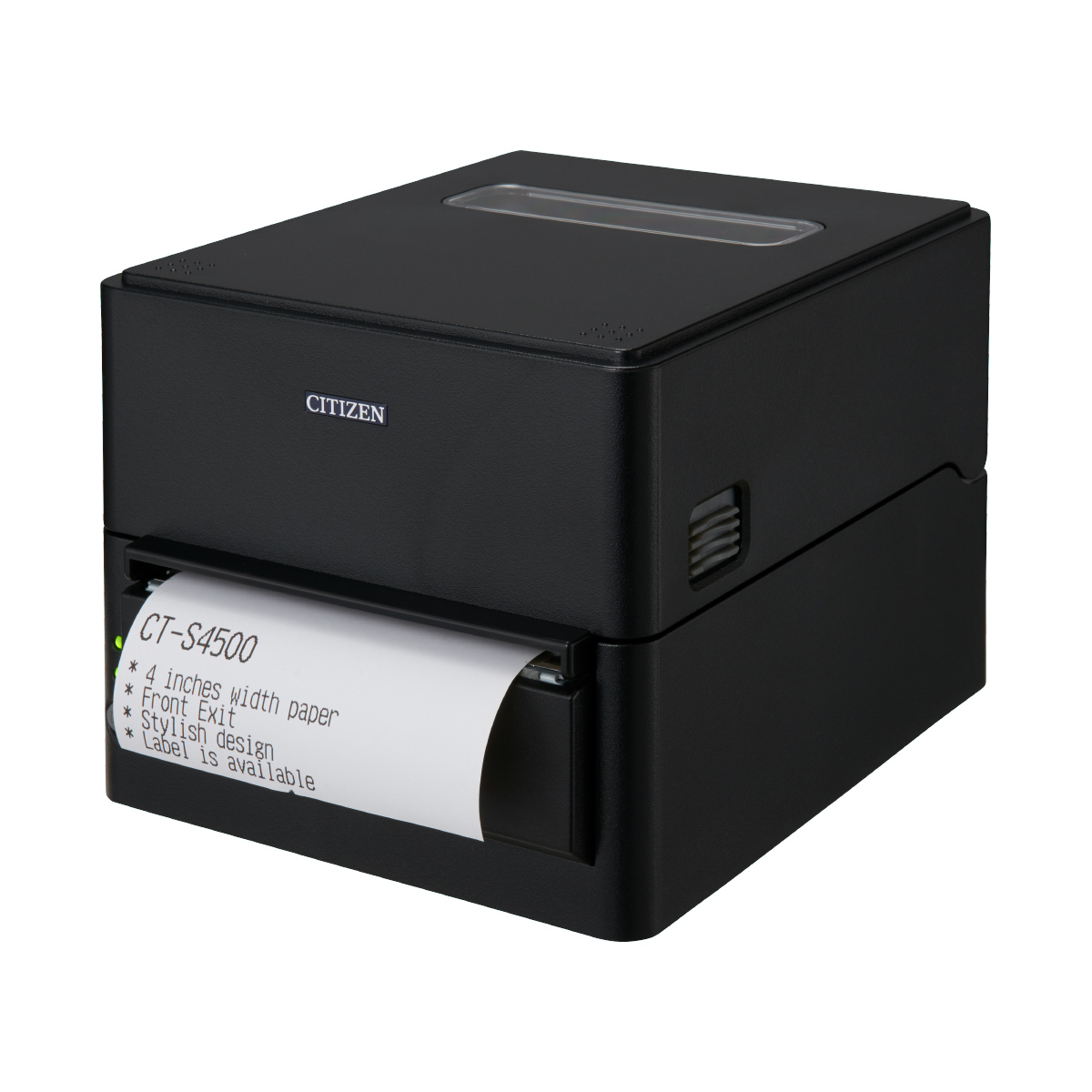

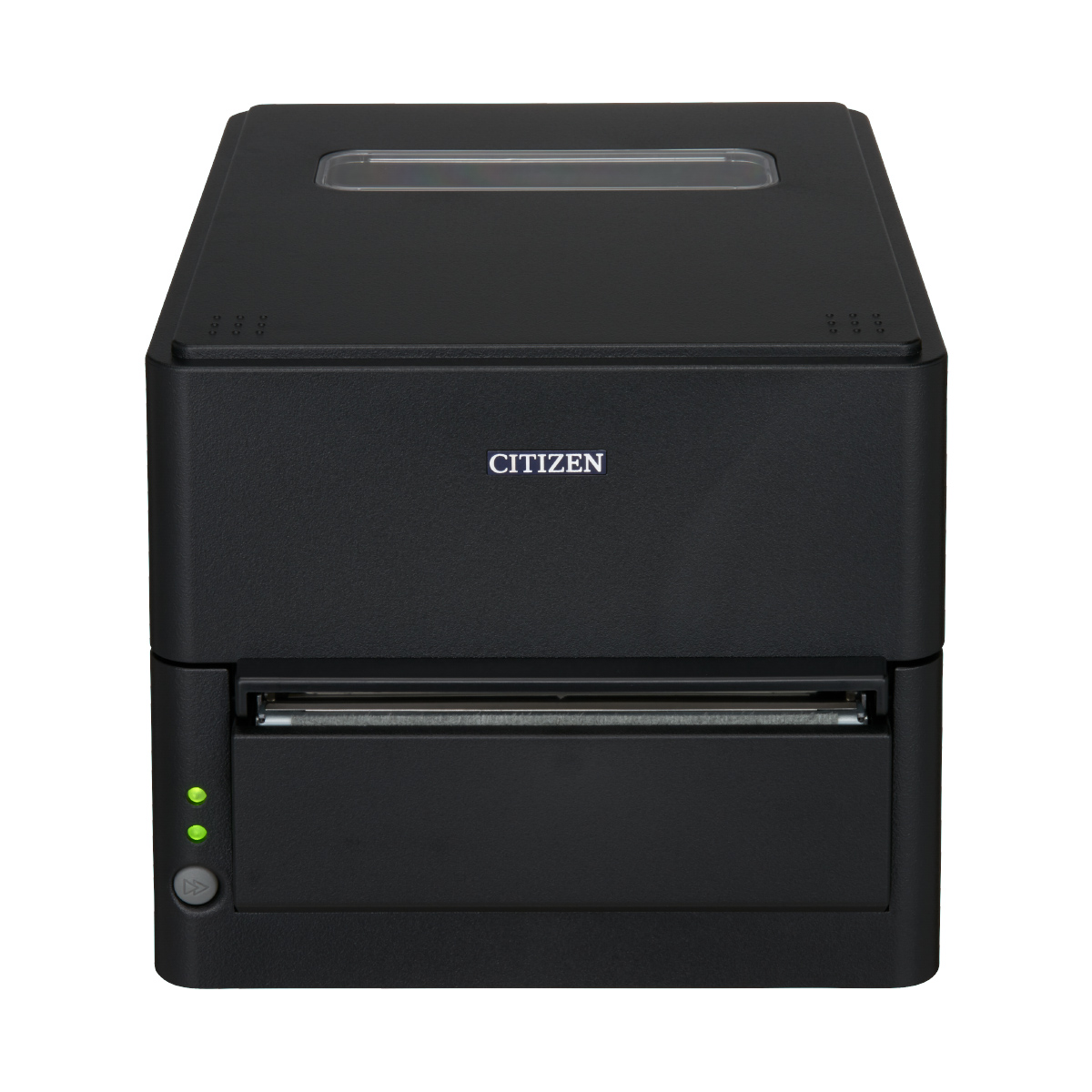

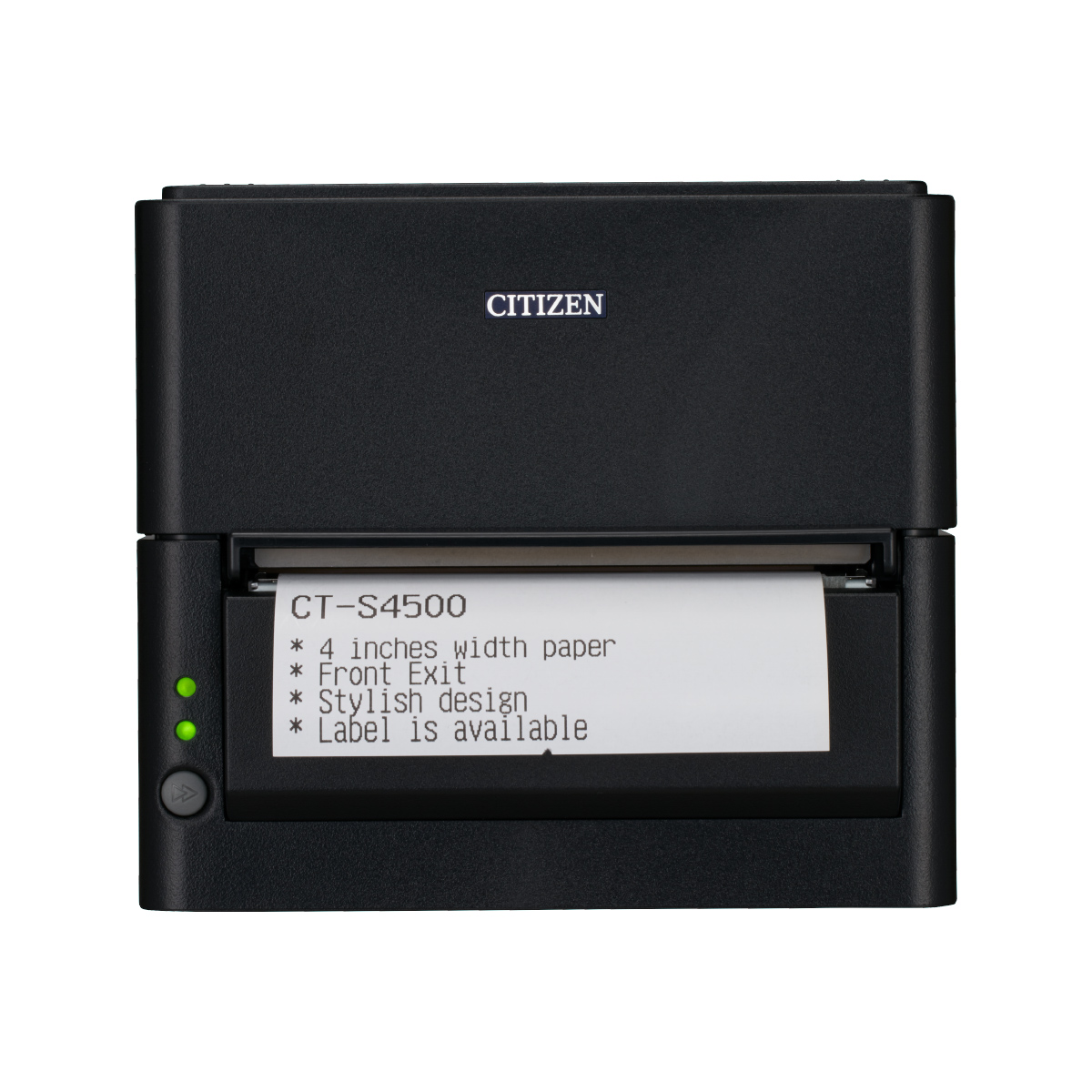

Citizen Receipt Printer CT-S4500

CT-D150 / CT-D151

Features

Thermal receipt printer supporting 112mm paper width

Paper Width : 58mm *labels only to 80mm to 112mm

Print Method:
Direct Thermal Printing

Functions

Printing Speed: up to 200mm/sec.

Auto Cutter

Buzzer

Cash Drawer Kicker

Drop-in Paper Loading

Shaft for Paper Roll

Auto Cutter

Buzzer

Cash Drawer Kicker

Drop-in Paper Loading

Black Mark Sensor *2

Applications

Features

High-speed printing at 200mm/sec.

Achieves one of the industry’s highest speeds for a 4-inch POS printer at 200mm/sec.

Supports paper rolls up to 102mm in diameter, as well as various paper types

Selection of either a drop-in paper loading method or a paper shaft method
– Thermal Paper Roll: 80 to 112mm
– Thermal Label Paper Roll: 58 to 112mm

Features dual interfaces

In addition to a standard USB interface, there are several options to choose from.
Select a USB host model for uncluttered connection of peripheral devices

XML/Web app printing

Supports printing by directly sending XML data to the printer without installing a device driver (SDK) (equipped as standard with LAN model)

Provides USB power

Equipped as standard with a powered USB port which can charge tablets and other devices (up to of 2.1A)

Supports multilingual printing

Ability to print multiple international character sets.
(Compatible languages: Simplified Chinese, Traditional Chinese, Japanese, Hangul)

Supports many different uses

Prints both receipts and labels.

Paper-saving function (ECO Printing)

Capable of using approximately 25% less paper by elimination of the top margin, compression of space between lines, and font size reduction.

Extensive variety of character types

Support for Simplified Chinese, Traditional Chinese, and Korean Hangul
Support for Thai and Vietnamese characters
Supports UTF-8

ARCP mechanism: High stability, High quality Print

Equipped with an ARCP mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.

(ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

Good for small label, severe print positionlabel

Support to use variety of ribbon & paper

ARCP: Active Ribbon Control & Positioning

Mechanism adjusts ribbon tension constantly

Label : Pulling ⇒ Constant adjustment

Label : Forwarding ⇒ Constant adjustment

Front-Open Structure：Top class usability in industrial category

All operations are possible from the front face of the printer.
Setting, adjustment, and replacement can be done quickly, reducing total work time.

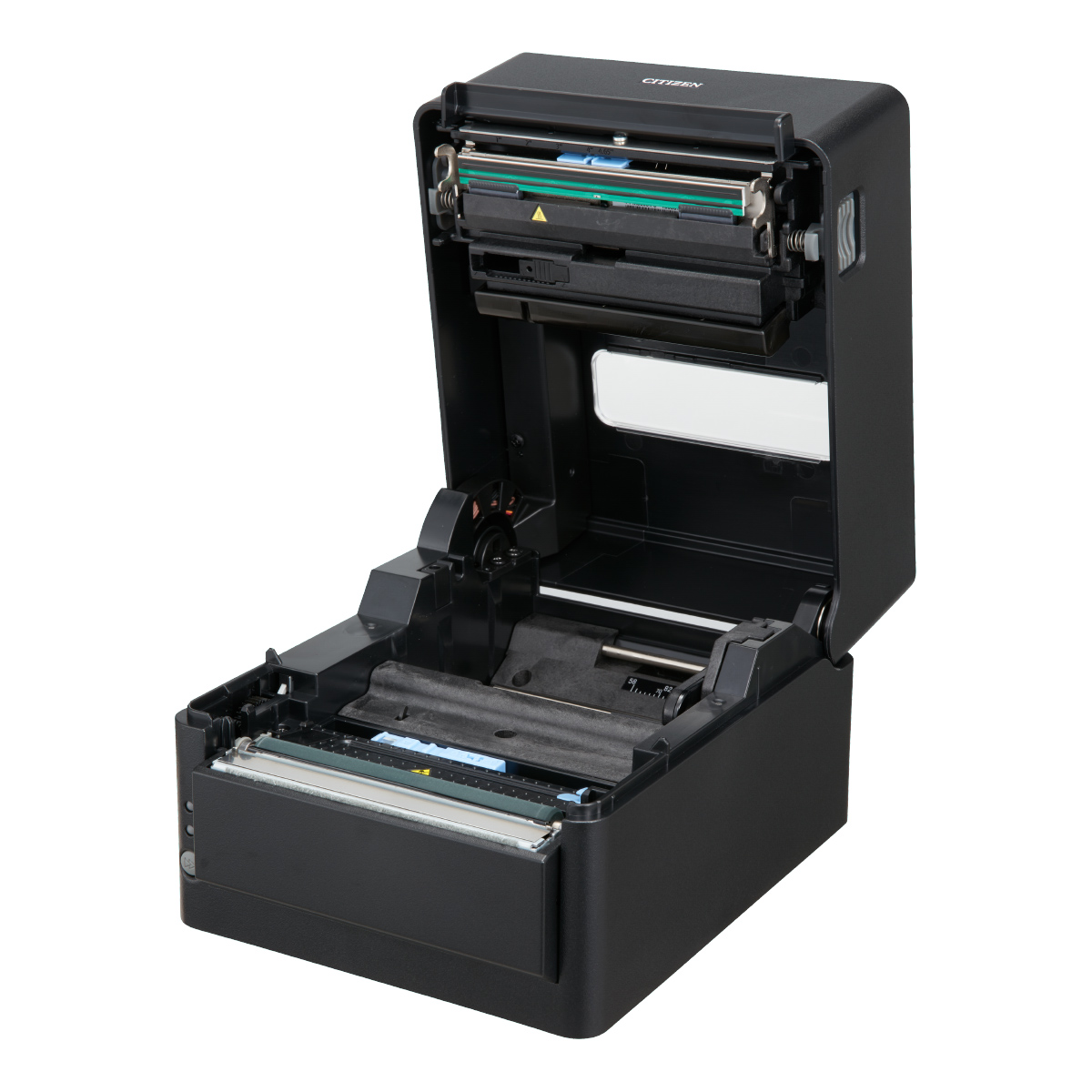

Wide open head, Flat Media Path:
Setting is extremely easy as the head opens wide with simple paper path.

Small Actual Footprint:
Printers can be installed side-by-side since no need to open in the side.

Safety＆Smooth Cover:
Cover can be fixed any position.
Check mechanism and paper status and operate the touch panel during the cover open.

Intuitive and Useful operation panel

Significant improvement in visibility

Hard key prepared for frequent use button such as FEED and STOP.
Backlit button: Easy to see in dark environment
Corner LED: Printer status visible from the side. Power/Error.

Easy to see and use operation panel
Main Menu: Easily check current settings

Header Info: Network status, Standard I/F, Option I/F, Keyboard Lock etc.
Custom Info: Model No., IP address, Global Config Number at all times.
Shortcuts: Quickly change settings.

Increased efficiency in label printing.

Setup Wizard: Easy to set up by looking guide and wizard.
Quick Info: Quickly check main specifications and settings.
Preview: Quickly check jobs and process tasks.

Easy to set by USB flash drive

Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
For exporting you can attach explanation to the settings.

Firmware Update: Efficiency for kitting works.

Troubleshoot: reducing loss time

WEB Guide: resolve errors by referring to the web page from the QRcode®.

Illustration Guide: Illustrate help you to understand procedures.

STANDALONE PRINTING:

Enable to print without the computer.
Stand alone function without programming

“Standalone Forms Print” function:

Easy standalone operation without programming*1
By installing Standalone Forms, Enable to print without the computer*2
Execute the print into label format stored.
Standalone Forms can be imported using USB Flash drive.

Supports three different formats.

Scan data printing: Input data ⇒Print on label format stored in the printer*3
CSV File Conversion Printing: Input data ⇒Print the data that look for the data in CSV file*3
CSV File printing by batch: CSV in USB flash drive⇒Print all data in CSV file by batch

*1: Create Standalone Forms with Layout Editor.
*2: Standalone Forms can be installed on multiple devices
*3: Data source: Scanner, other interface.

CSV File Conversion Printing:

Scan the barcode to read the data.
Look for the data in CSV and matched data will be used for printing.
Convert the data.
Print the label.

Remote Maintenance: Manage multiple printers remotely*1

Increased management & support efficiency

Remote monitoring

Counter: print distance, cut times
Confirm Firm Ver.
Printer status
Jobmanagement & history

Remote Maintenance

Firmware Update
Printer setting Backup/Restore
Send files: Com1mand, LOGO, Printing data

*1: When us Using the Option Interface board.

Manage multiple printers from Citizen’s cloud server remotely.
Printer registration, Search and filter by criteria.
FW can be updated at specified times

Easy Maintenance: Reduce maintenance time

Head/Platen:

Easy parts replacement and cleaning
①Head opens 85 degrees. Coveropens90 degrees more.

Easy disassembly and installation
②Head: Screwdriver only

③Platen: No tool required

Option Parts: Easier to install than previous model.

Cutter/Peeler:
④ ⑤Tool free ⑥From 2 screws to just 1 screw at upper position.

Option Interface Board:
⑦new insertion guide has been added to make positioning easier. Click in interfaces: no cable folding required.

CITIZEN LinkServer：

CITIZEN LinkServer for Android:

by USB connection/Android Application/For smartphones and stablets

Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App “Citizen LinkServer” is installed.

CITIZEN LinkServer(Web Monitor):

by LAN connection/Platform(OS) Free/Web browser Utility

For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.

Standard Support for SAP ERP* System

*ERP: Enterprise Resource Planning

Standard Support for rMQR Code®

New QR Code® “rMQR Code®” is supported.

This code is ideal for narraw and long spaces.

Larger capacity than Micro QR Code, max. 361 characters.

Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin

*Please contact us for details regarding rMQR Code®.

*QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.

Support to use variety of paper

Adjustable sensor:

Equipped with Adjustable sensorand Front Fix sensor

Gap and Black Mark detect positions can be adjusted in the paper width direction.

Support fan-fold paper:

Support fan-fold paper by insertingfrom the back from the main unit.

Option Cutter, Peeler Unit:

Ready for rotary cutter, pizza cutterand peeler. ＊Not factory option

Main Applications

Receipts

Tickets

Kitchen

Barcode Printing

Used in the following industries

Hospitality

Distribution

Healthcare/Clinical

Basic Functions

Features

Supported Interfaces

Available Drivers

Supported Platform by SDKs

Specifications

Print Method	Direct Thermal Printing
Printing Width	4 inch = 104mm, 90mm / 3 inch = 82.5mm, 72mm, 68.25mm, 64mm / 2 inch (labels only) = 54.5mm, 54mm, 52.5mm, 48mm, 45mm
Maximum Printing Speed	200mm/sec. * Print Density 100%
Paper	Paper Thickness: 60 to 150μm Auto Cutter: equipped as standard (partial cut as well as full cut) Full cut only for Thermal Label Paper Roll and for Thermal Paper Roll with a paper thickness of 85μm or more
Number of Columns Printable	When paper width is 112mm: Font A: 69 columns (12×24 dots) Font B: 92 columns (9×24 dots) Font C: 104 columns (8×16 dots) Kanji Font A: 34 columns (24×24 dots) Kanji Font C: 52 columns (16×16 dots)
Character Size	Font A: 1.5×3mm Font B: 1.13×3mm Font C: 1×2mm Kanji Font A: 3×3mm Kanji Font C: 2×2mm
Character Types	Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), Kana, JIS C 6226-1983
User Memory	384 kB (user-made characters and logos can be registered)
Barcodes	UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7), QR codes, PDF417, GS1 Databar
Interfaces	Equipped as Standard: USB Selectable additions: Serial RS-232C compatibility, wired LAN, wireless LAN, Bluetooth, wired LAN + USB host, Bluetooth + USB host
Input Buffer	4k/45 bytes
Power Supply Voltage	AC Type: AC100V
Power Consumption	Normal Printing: 65W; Standby: 1.5W
Drawer Kick-Out	Control of up to 2 drawers
Usage Environment	Operating Environment Temperature/Humidity: 5 to 40℃; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60℃; 5 to 90% RH (no condensation)
Mass	Approx. 2.5kg
External Dimensions	170(W)×217(D)×152(H) mm
AC Adapter Specifications	Input：AC100V/240V, 50/60Hz Output：DC24V
Main Body Case Color	Cool White, Black
Reliability	Head Life: 100km, 100 million pulses Cutter Life: 1 million cuts (paper thickness 65μm to 85μm, paper width: 3 to 4 inches)
Accessories	Thermal paper roll (*small-diameter paper included with accessories) Clamp Cable Quick Start Guide AC cord

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

USB Power Save Mode

When connected to a host through USB, the printer’s power synchronizes with the host’s power, helping to conserve power as the host is switched ON and OFF.

Dimensions

(Unit: mm)

Interfaces

Along with standard USB, 1 additional connection method can be selected as a factory option.

Equipped as Standard

USB

Serial

Parallel

Factory Options

One of the following connection methods can be selected Receipt Printers

Serial

Wired LAN

Wireless LAN

Bluetooth

USB Host + Wired LAN

USB Host + Bluetooth
