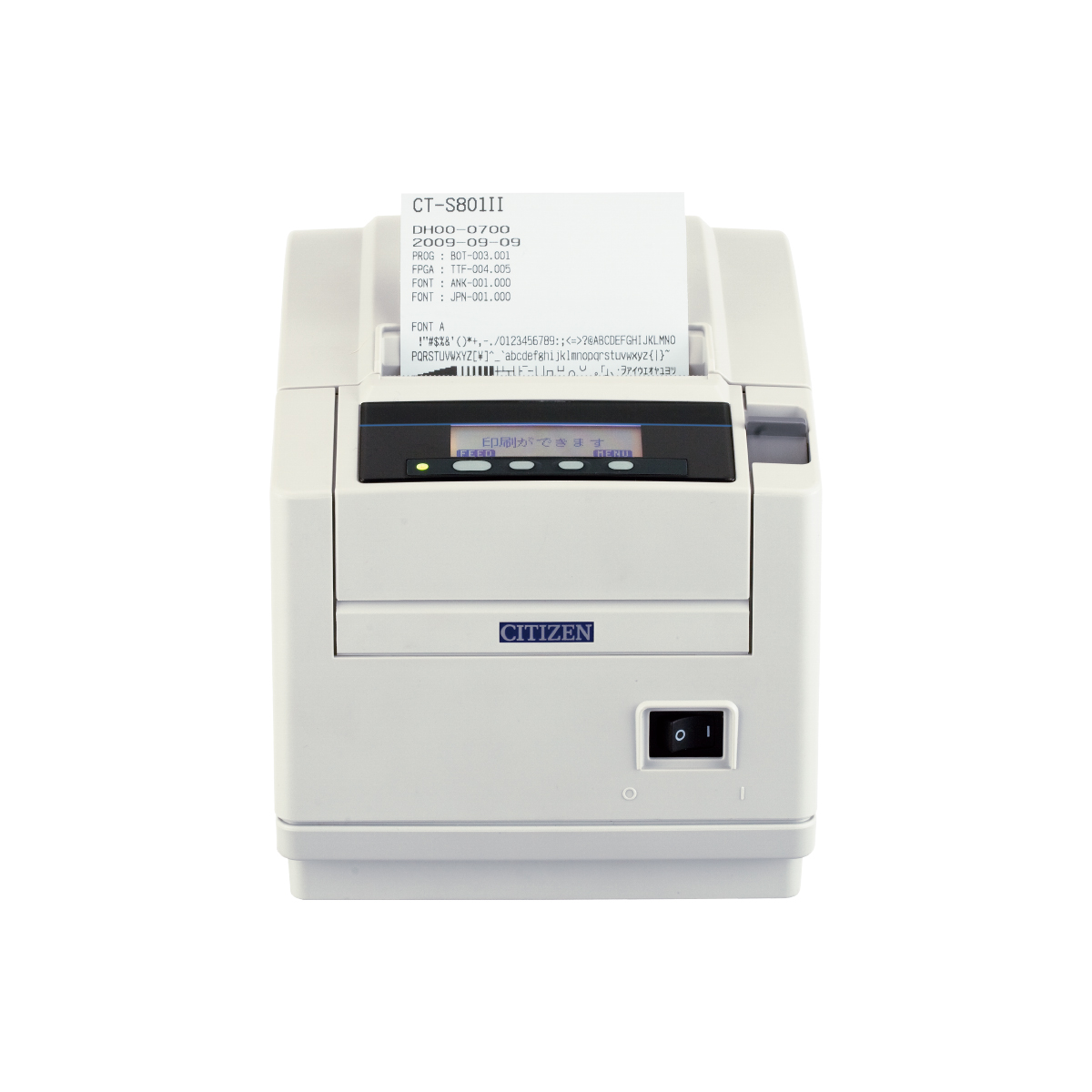

Citizen Receipt Printer CT-S801 II

CL-S700 / CL-S703

Features

Featuring an LCD screen for easy setting changes and capable of high-speed printing at 300mm/sec. A top paper exit model with new features.

Paper Width : 58 to 80mm

Print Method:
Direct Thermal Printing

Functions

Printing Speed: Up to 300mm/sec.

Auto Cutter

Buzzer

Cash Drawer Kicker

Drop-in Paper Loading

Internal Power Supply (With extended base option)

Applications

Features

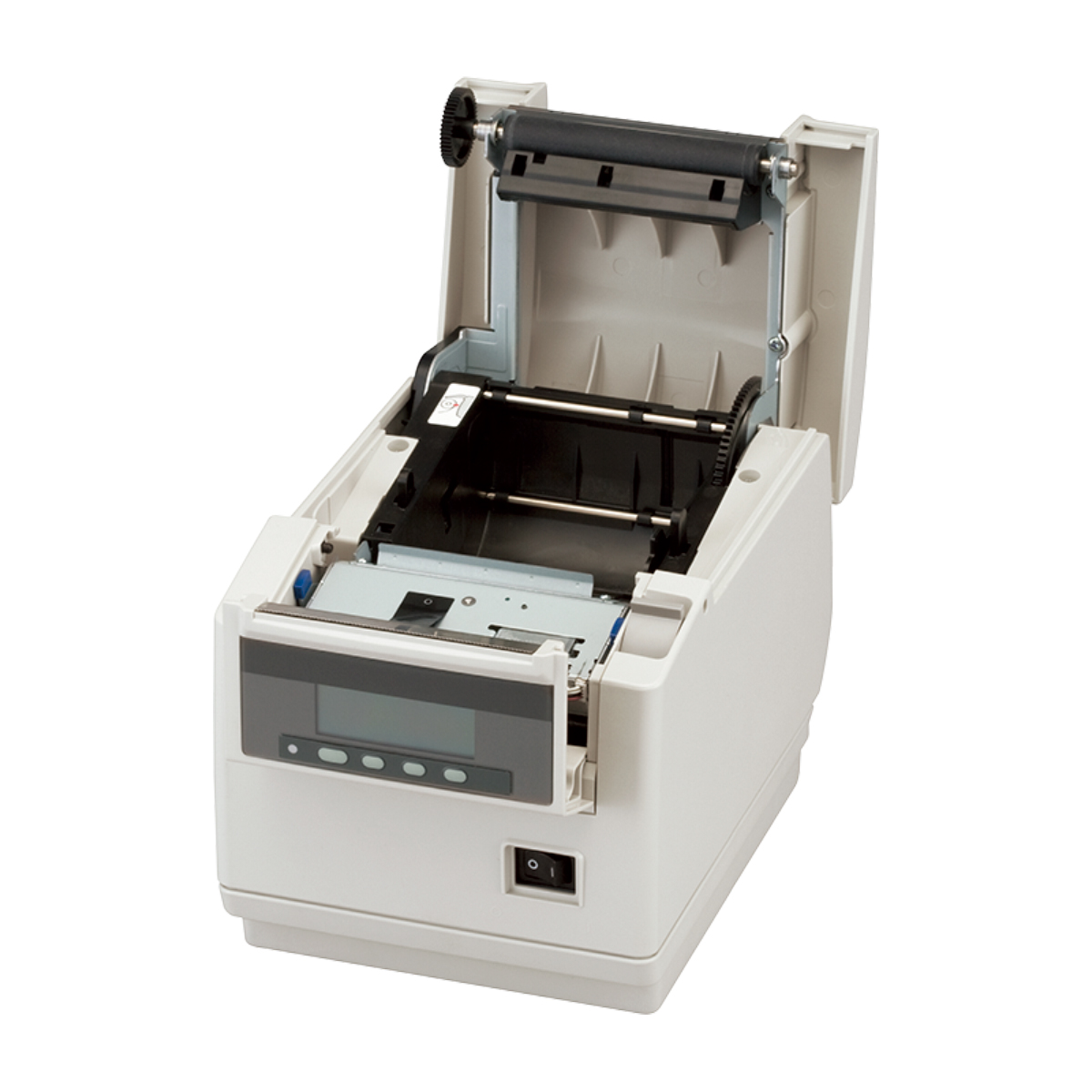

Easy to open

Easy maintenance of head and cutter.

Small-Footprint Design

AC adapter can be equipped inside the bottom face
(Internal Power Supply Type)

One of the industry’s fastest printing speeds of up to 300mm/sec.

Apple MFi license program certified Bluetooth, and multi-OS compatible (iOS/Android/Windows).

Equipped with LCD monitor for easy checking of messages and setting of functions

Equipped with paper-saving function to conserve paper

Grayscale printing (16 shades) allows optimal printing of pictures and other images.

Extensive variety of character types

Support for Simplified Chinese, Traditional Chinese, and Korean Hangul
Support for Thai and Vietnamese characters
Supports UTF-8

Features a substantial variety of drivers and an abundance of utilities

Comes with a 2-year warranty to ensure full support after purchase

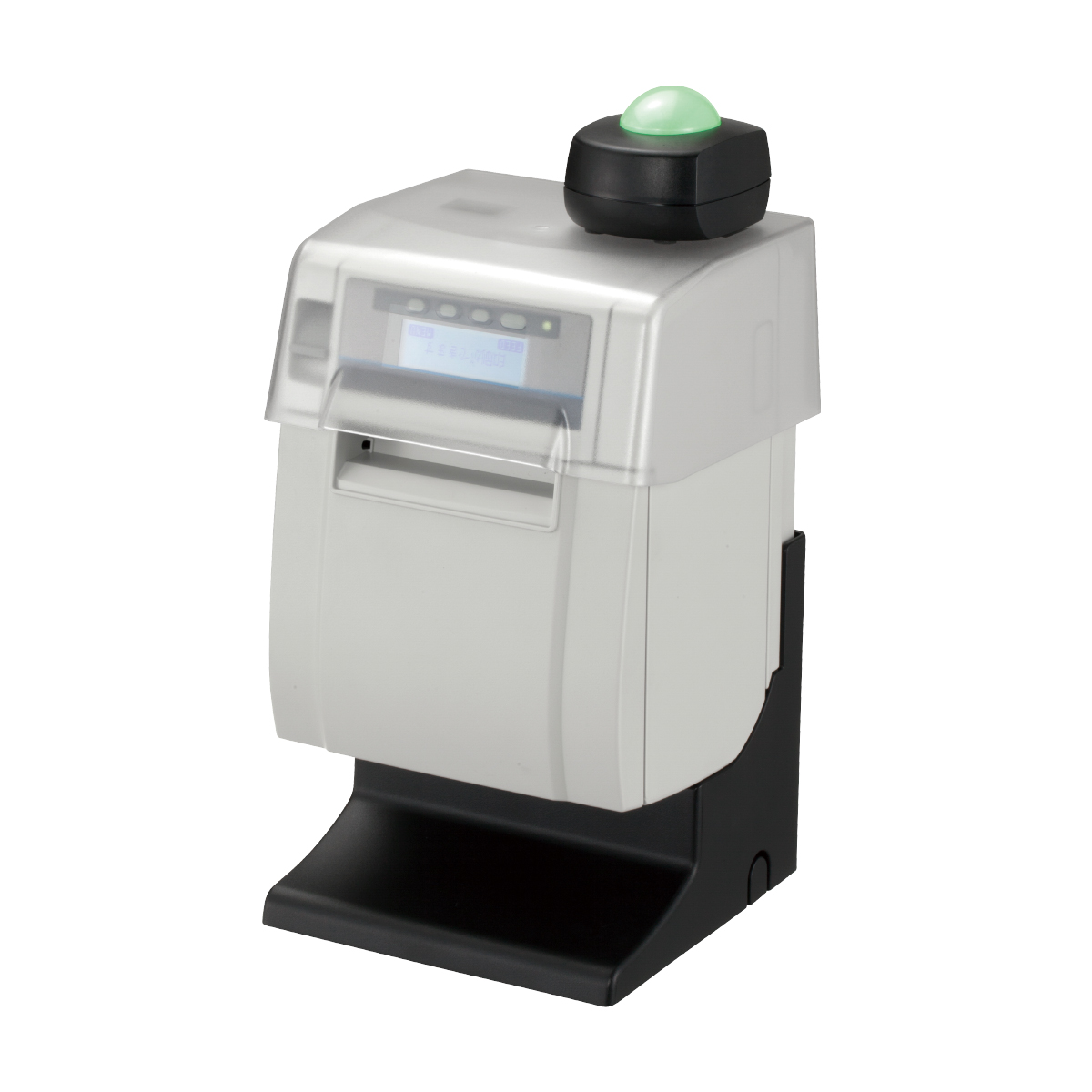

Vertical Placement Kit (Option sold separately)

Ideal for cooking-instruction slips in the kitchen.
*Cannot be used when equipped with parallel interface

ARCP mechanism: High stability, High quality Print

Equipped with an ARCP mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.

(ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

Good for small label, severe print positionlabel

Support to use variety of ribbon & paper

ARCP: Active Ribbon Control & Positioning

Mechanism adjusts ribbon tension constantly

Label : Pulling ⇒ Constant adjustment

Label : Forwarding ⇒ Constant adjustment

Front-Open Structure：Top class usability in industrial category

All operations are possible from the front face of the printer.
Setting, adjustment, and replacement can be done quickly, reducing total work time.

Wide open head, Flat Media Path:
Setting is extremely easy as the head opens wide with simple paper path.

Small Actual Footprint:
Printers can be installed side-by-side since no need to open in the side.

Safety＆Smooth Cover:
Cover can be fixed any position.
Check mechanism and paper status and operate the touch panel during the cover open.

Intuitive and Useful operation panel

Significant improvement in visibility

Hard key prepared for frequent use button such as FEED and STOP.
Backlit button: Easy to see in dark environment
Corner LED: Printer status visible from the side. Power/Error.

Easy to see and use operation panel
Main Menu: Easily check current settings

Header Info: Network status, Standard I/F, Option I/F, Keyboard Lock etc.
Custom Info: Model No., IP address, Global Config Number at all times.
Shortcuts: Quickly change settings.

Increased efficiency in label printing.

Setup Wizard: Easy to set up by looking guide and wizard.
Quick Info: Quickly check main specifications and settings.
Preview: Quickly check jobs and process tasks.

Easy to set by USB flash drive

Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
For exporting you can attach explanation to the settings.

Firmware Update: Efficiency for kitting works.

Troubleshoot: reducing loss time

WEB Guide: resolve errors by referring to the web page from the QRcode®.

Illustration Guide: Illustrate help you to understand procedures.

STANDALONE PRINTING:

Enable to print without the computer.
Stand alone function without programming

“Standalone Forms Print” function:

Easy standalone operation without programming*1
By installing Standalone Forms, Enable to print without the computer*2
Execute the print into label format stored.
Standalone Forms can be imported using USB Flash drive.

Supports three different formats.

Scan data printing: Input data ⇒Print on label format stored in the printer*3
CSV File Conversion Printing: Input data ⇒Print the data that look for the data in CSV file*3
CSV File printing by batch: CSV in USB flash drive⇒Print all data in CSV file by batch

*1: Create Standalone Forms with Layout Editor.
*2: Standalone Forms can be installed on multiple devices
*3: Data source: Scanner, other interface.

CSV File Conversion Printing:

Scan the barcode to read the data.
Look for the data in CSV and matched data will be used for printing.
Convert the data.
Print the label.

Remote Maintenance: Manage multiple printers remotely*1

Increased management & support efficiency

Remote monitoring

Counter: print distance, cut times
Confirm Firm Ver.
Printer status
Jobmanagement & history

Remote Maintenance

Firmware Update
Printer setting Backup/Restore
Send files: Com1mand, LOGO, Printing data

*1: When us Using the Option Interface board.

Manage multiple printers from Citizen’s cloud server remotely.
Printer registration, Search and filter by criteria.
FW can be updated at specified times

Easy Maintenance: Reduce maintenance time

Head/Platen:

Easy parts replacement and cleaning
①Head opens 85 degrees. Coveropens90 degrees more.

Easy disassembly and installation
②Head: Screwdriver only

③Platen: No tool required

Option Parts: Easier to install than previous model.

Cutter/Peeler:
④ ⑤Tool free ⑥From 2 screws to just 1 screw at upper position.

Option Interface Board:
⑦new insertion guide has been added to make positioning easier. Click in interfaces: no cable folding required.

CITIZEN LinkServer：

CITIZEN LinkServer for Android:

by USB connection/Android Application/For smartphones and stablets

Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App “Citizen LinkServer” is installed.

CITIZEN LinkServer(Web Monitor):

by LAN connection/Platform(OS) Free/Web browser Utility

For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.

Standard Support for SAP ERP* System

*ERP: Enterprise Resource Planning

Standard Support for rMQR Code®

New QR Code® “rMQR Code®” is supported.

This code is ideal for narraw and long spaces.

Larger capacity than Micro QR Code, max. 361 characters.

Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin

*Please contact us for details regarding rMQR Code®.

*QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.

Support to use variety of paper

Adjustable sensor:

Equipped with Adjustable sensorand Front Fix sensor

Gap and Black Mark detect positions can be adjusted in the paper width direction.

Support fan-fold paper:

Support fan-fold paper by insertingfrom the back from the main unit.

Option Cutter, Peeler Unit:

Ready for rotary cutter, pizza cutterand peeler. ＊Not factory option

Operation Panel

LCD

Displays printer status, functions of keys, types of errors, and messages.
The utility software can be used to change the display content, such as displaying the message “Add paper” for the Paper Error when the printer runs out of paper.

LCD Auto SHUTOFF Function
LCD and backlight automatically turn off when data is received from the host, when an error is detected, or when there are no key inputs on the operation panel for a specific period of time.

Supports Vertical Installation
Display can be vertically flipped with the memory switch when the printer is installed vertically or on the wall.

Maintenance Operation
Easy maintenance of head and cutter

LED shows information with easy-to-recognize colors

Light OFF
Printer’s power is OFF

Green Light
Printer’s power is ON

Red Light
Error or special mode activated

Orange Light
Paper near end, printer head set for high-speed, LCD is OFF

Operation Keys

FEED Key
Feeds paper while pressed. Can also be pressed to clear a cutter lock error after the cause has been eliminated.

MENU Key
Activates memory switch setup mode when pressed for over two seconds.

MENU Key Lock
Function for preventing erroneous operation by making it difficult to enter memory setup mode.

Main Applications

POS/ECR equipment

Measuring equipment/medical equipment

Printing from various instruments, terminals and machines

Used in the following industries

Financial

Retail

Food

Distribution

Restaurants

Healthcare/Clinical

Basic Functions

Features

Supported Interfaces

Available Drivers

Supported Platform by SDKs

Specifications

Print Method	Direct Thermal Printing
Dot Density	Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed	300mm/sec. (2,400 dots/sec.) Printing Condition: Print Rate 12.5%, Print Density 100%
Line Spacing	4.25mm (1/6 inch) configurable by command
Paper	Paper Width: 3-inch (83mm/80mm), 2-inch (60mm/58mm) Paper Roll Diameter: up to 83mm Paper Thickness: 65 to 75μm (Paper tube inner diameter 12mm/outer diameter 18mm), 75 to 85μm (Paper tube inner diameter 25.4mm/outer diameter 32mm), Label thickness 65 to 150μm (but with label paper thickness at 65 to 85μm, and mount thickness at 80μm or less)
Printing Width	80mm 72mm 54.5mm 54mm
Number of Columns Printable	When paper width is 83mm: Font A: 53 columns (12×24 dots) Font B: 71 columns (9×24 dots) Font C: 80 columns (8×16 dots) Kanji Font A: 26 columns (24×24 dots) Kanji Font C: 40 columns (16×16 dots)
Character Size	Font A: 1.5×3mm Font B: 1.13×3mm Font C: 1×2mm Kanji Font A: 3×3mm Kanji Font C: 2×2mm
Character Types	Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), JIS X0213
User Memory	384K bytes (user-made characters and logos can be registered)
Barcodes	UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1　*1
2D Barcodes	PDF417, QR CODE
Interfaces	Serial (RS-232C compliant), Parallel (IEEE1284 compliant, Centronics compliant), USB (Full speed), Bluetooth (MFi certification acquired), USB with HUB, Wired LAN (Standard and High-Performance specs), Powered USB
Operation Panel	128 x 32 dot STN LCD, red/white 2-color LED backlight, operation keys: 4 keys
Input Buffer	4k or 45 bytes
Power Supply Voltage	AC100 to 240V
Power Consumption	Approx. 45W (when printing) Standby: 3W
Drawer Kick-Out	Control of up to 2 drawers
External Device Connector	RJ45 connector, serial interface (fixed at 19,200 bps/8 bit/no parity) Can supply DC24V power
Usage Environment	Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass	Approx. 2.1 kg
External Dimensions	145 (W) x 192 (D) x 148 (H) mm
AC Adapter Specifications	Input: AC100 to 240V 50/60Hz 120VA Output: DC24V 1.9A
Main Body Case Color	White
Reliability	Head Life: abrasion-resistance 150 km, 200 million pulses (room temperature, room humidity, specified recommended paper) Auto cutter life: 2 million cuts (room temperature, room humidity, specified recommended paper)
Standards Compliance	CB, UL, FCC, Energy star, cUL, IC, CE, UKCA, CCC The acquired standards apply when Citizen Systems AC Adapter (37AD2/37AD3) is used. Please contact us for other standards
Utility Software	Printer Customization, POS Printer Utility
Drivers	Windows, OPOS, POS　for.NET, Java POS, CUPS
Accessories	AC Cord: ×1 Thermal Paper Roll for Testing: 1 roll AC Adapter: ×1 *only for AC Adapter type Quick Start Guide Power Switch Cover Cable Cover (for built-in AC Adapter type) Cable Cover (for external AC Adapter type)

*1 Please contact us for details regarding GS1.

USB Power Save Mode

When connected to a host through USB, the printer’s power synchronizes with the host’s power, helping to conserve power as the host is switched ON and OFF.

Dimensions

(Unit: mm)

Interfaces

For the interface, select one connection method from the available factory options: USB, Serial, Parallel, Wired LAN, Wireless LAN, or Bluetooth + USB.
Other options sold separately.

Equipped as Standard

USB

Serial

Parallel

Factory Options

One of the following connection methods can be selected

USB

Serial

Parallel

Wired LAN

Wireless LAN

USB Host + Wired LAN

Bluetooth + USB

Print receipts and tickets on demand and on the go with TSC’s Alpha-2R compact and affordable 2-inch mobile receipt printer. While cost-effective, the Alpha-2R is still equipped with many important features and offers a selection of competitive accessories.

The Alpha-2R is TSC’s third Mobile Barcode Printer offering in the Alpha Series of cost-efficient, high durability printers that now include 2-inch, 3-inch, and 4-inch wide mobile barcode printers. The Alpha-2R is a comfortable, lightweight printer capable of working with any mobile printing application where you need access to quick, simple receipts or tickets.

TSC delivers more for our customers with the Alpha-2R without sacrificing function or performance:

Print More – The Alpha-2R offers one of the largest media capacities in the 2-inch receipt market with a media capacity of 58 mm wide and a maximum receipt roll out diameter of 50 mm
Print Longer – The Alpha-2R was designed to be Energy Star 2.0 compliant and features 17 hours of usage on a battery charge with an average of a 2 minute printer interval (BT mode)
Broad Application with Excellent Printing Compatibility – ESC-POS, CPCL, and ZPL emulations available
Print Quality – Smart Algorithm to adjust print speed & condition based on layout & heat history
Better Warranty – Two-year warranty

The Alpha-2R is designed for durability and comes out of the box with an IP42 rating which may be upgraded by adding its IP54 rated protective case to resist dust and water.

These small and light printers can be worn comfortably for a full shift, without interfering with the user’s tasks. Use wired or wireless communication interfaces including USB 2.0, RS-232, Bluetooth 4.0, Bluetooth 4.2 plus Apple MFi, NFC and 802.11 a/b/g/n (support Bluetooth, either one use) to connect to a mobile computer or even a smartphone and produce clear easy-to-read receipts/labels hour after hour.

The printer’s Near Field Communication (NFC) makes it simple to connect to an Alpha-2R directly from a compatible device. NFC is a technology found on many of today’s mobile devices that enables wireless two-way communication between two devices within close proximity of one another. NFC capability automatically establishes a direct connection between your NFC-enabled smartphone or tablet and an Alpha-2R printer, so you can print or scan using any number of applications without having to connect to a network or enter any login credentials.

Citizen Receipt Printer CT-S801 II
